We are taking our place at Future Fish Eurasia, one of the biggest gatherings of the sector. We look forward to welcoming you at our stand to present our newest aquaculture, filtration processes, and high-tech tank systems.
Booth Number
C214
CEKA Industrial, in its modern production facility in Istanbul Tuzla Organized Industrial Zone; is a solution center that produces high-engineering tanks, filtration systems and process equipment from polyethylene (PE), polypropylene (PP) and stainless steel materials.
Established in 2023 with the vision of closing the gap in "quality manufacturing and correct engineering" in the sector; our company has quickly become a reliable supplier for the chemical, food, aquaculture and marine sectors.
We are not just a manufacturer, but an integrated solution partner. We manage your projects end-to-end, from design on paper to on-site installation, commissioning and after-sales support.
Our production philosophy is based on durability, energy efficiency and ease of operation. We combine future technologies with today's industry to produce sustainable and global standard projects. Project-specific production and after-sales support are the natural result of this approach.
To produce solutions that increase efficiency, are long-lasting and environmentally friendly.
To be a leading supplier producing at global standards.
Not mass production, but boutique and technical solutions tailored to specific needs.
PP, PE and Stainless Steel manufacturing capability for hybrid solutions.
In-depth application knowledge, especially in RAS (Aquaculture) and filtration systems.
Engineering focused on minimum pressure loss and maximum hydraulic efficiency.
Installation, commissioning and lifetime technical consultancy services.
100% domestic capital and fast logistics from our factory in Istanbul.
All systems are designed and produced within CEKA Industrial.
Compact filters (LSS), protein skimmers, drum filters, UV systems and MBBR biological treatment units.
Chemically resistant Polypropylene (PP) and Polyethylene (PE) stock, process and dosing tanks.
AISI 304/316L hygienic stainless steel tanks suitable for food and pharmaceutical industry standards.
Removal of harmful gases, odors and emissions from facilities with Activated Carbon Odor Filters.
Integrated project design and biological filter solutions for closed-circuit aquaculture systems (RAS).
Turnkey process equipment manufacturing with 3D design and engineering support, tailored to customer needs.

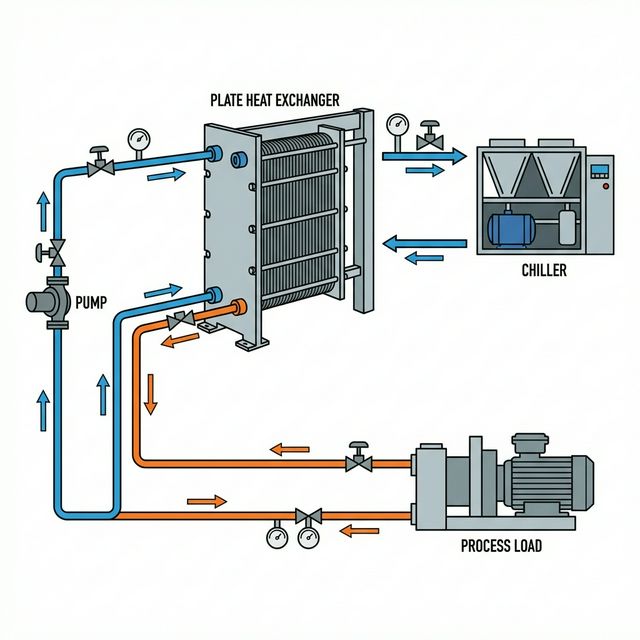

Closed-circuit cooling (heat exchanger) systems for vacuum pumps to prevent scaling and corrosion.
Full biosecurity with Pressurized Ozone Reactors and Ozone Destructor units.
CEKA Industrial produces custom-designed tanks, filtration and process equipment for different industrial sectors.
Material selection, engineering and production details are determined specifically for each application in each sector.
In your projects, we are not just a supplier, but a reliable solution partner who is with you from the design phase to commissioning.
Material and system architecture are determined specifically for each sector.
Water treatment for fish farms.
Marine type tank and treatment solutions.
Acid/base storage and safe processes.
Hygienic stainless steel tanks.
For solutions specific to your sector, contact CEKA Industrial.
High flow, automatic cleaning mechanical filtration.
Custom dimensions and capacityEffective disinfection solutions for water and process lines.
Custom dimensions and capacityRemoval of dissolved organic matter and gases from water.
Custom dimensions and capacityIntegrated and modular filtration units for limited spaces.
Custom dimensions and capacityFine particle retention at micron level for sensitive processes.
Custom dimensions and capacity"All filtration systems are custom designed and manufactured by CEKA Industrial."

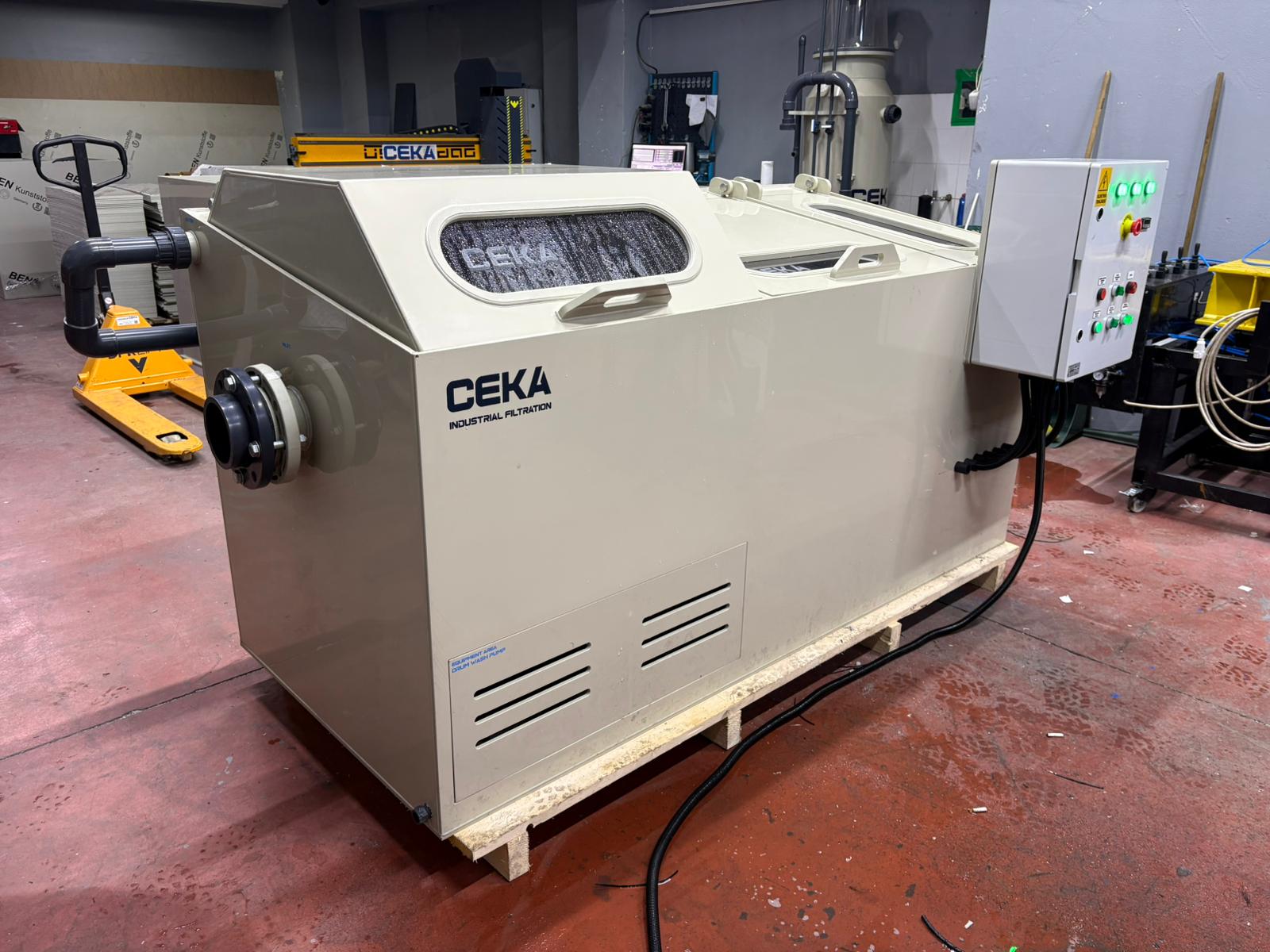

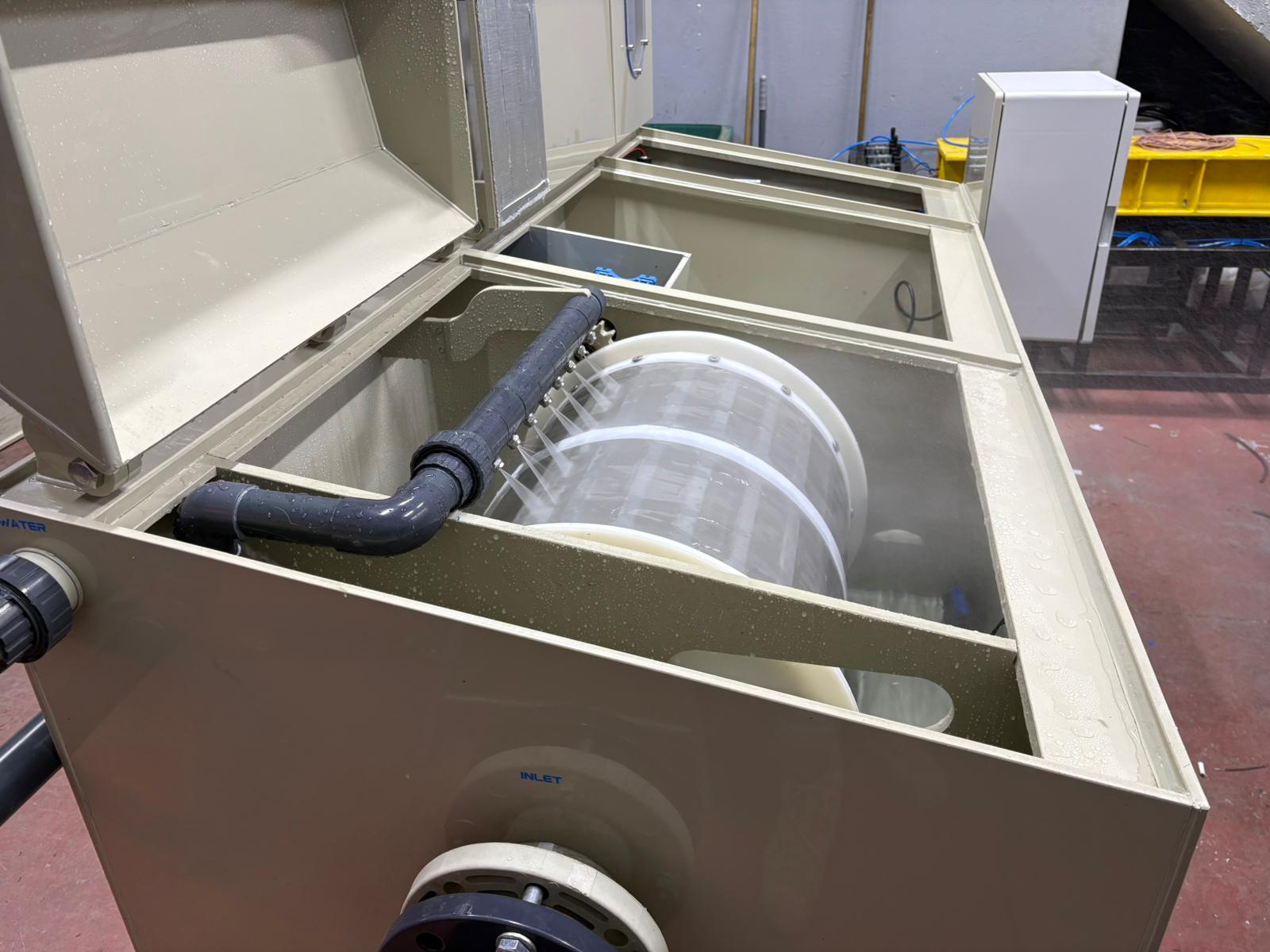

Saltwater Compact Systems

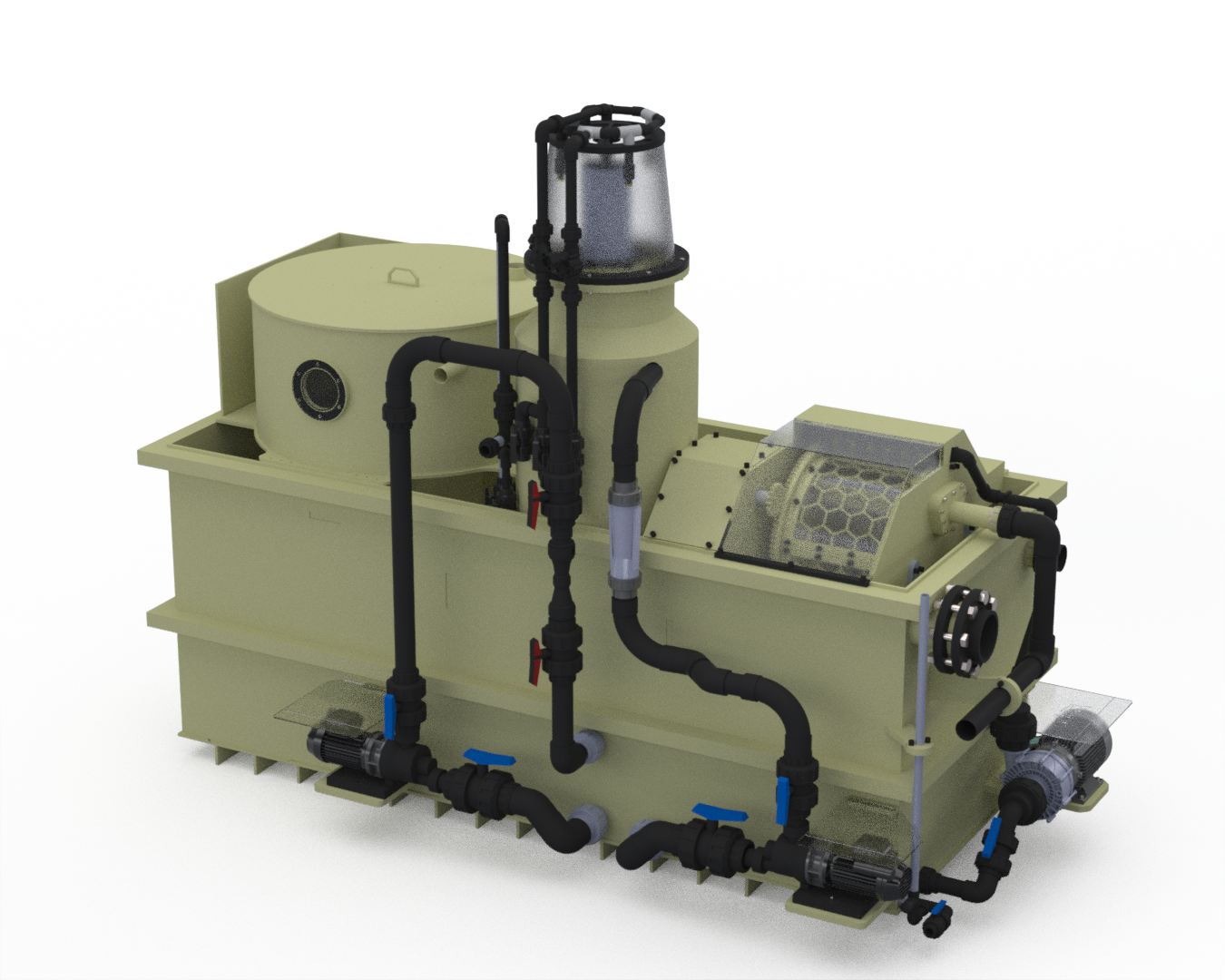

CEKA SWCS Series is an "All-in-One" filtration solution specially developed for marine life and saltwater applications.
The integrated Protein Skimmer unit effectively removes organic matter and proteins from the water. The mechanical drum filter screens solid waste, while the biological reactor provides ammonia removal.
Capacity and dimensions can be revised according to the project.
| TECHNICAL SPECIFICATIONS | SWCS5-M | SWCS10-M |
|---|---|---|
| System Capacity | 5 - 8 m³/h | 10 - 15 m³/h |
| Protein Skimmer Diameter | Ø 400 mm | Ø 500 mm |
| Biological Volume | 150 Liters | 300 Liters |
| Total Power | 0.45 kW | 0.75 kW |
| Dimensions (LxWxH) | 1450x850x1400 mm | 1850x1050x1500 mm |

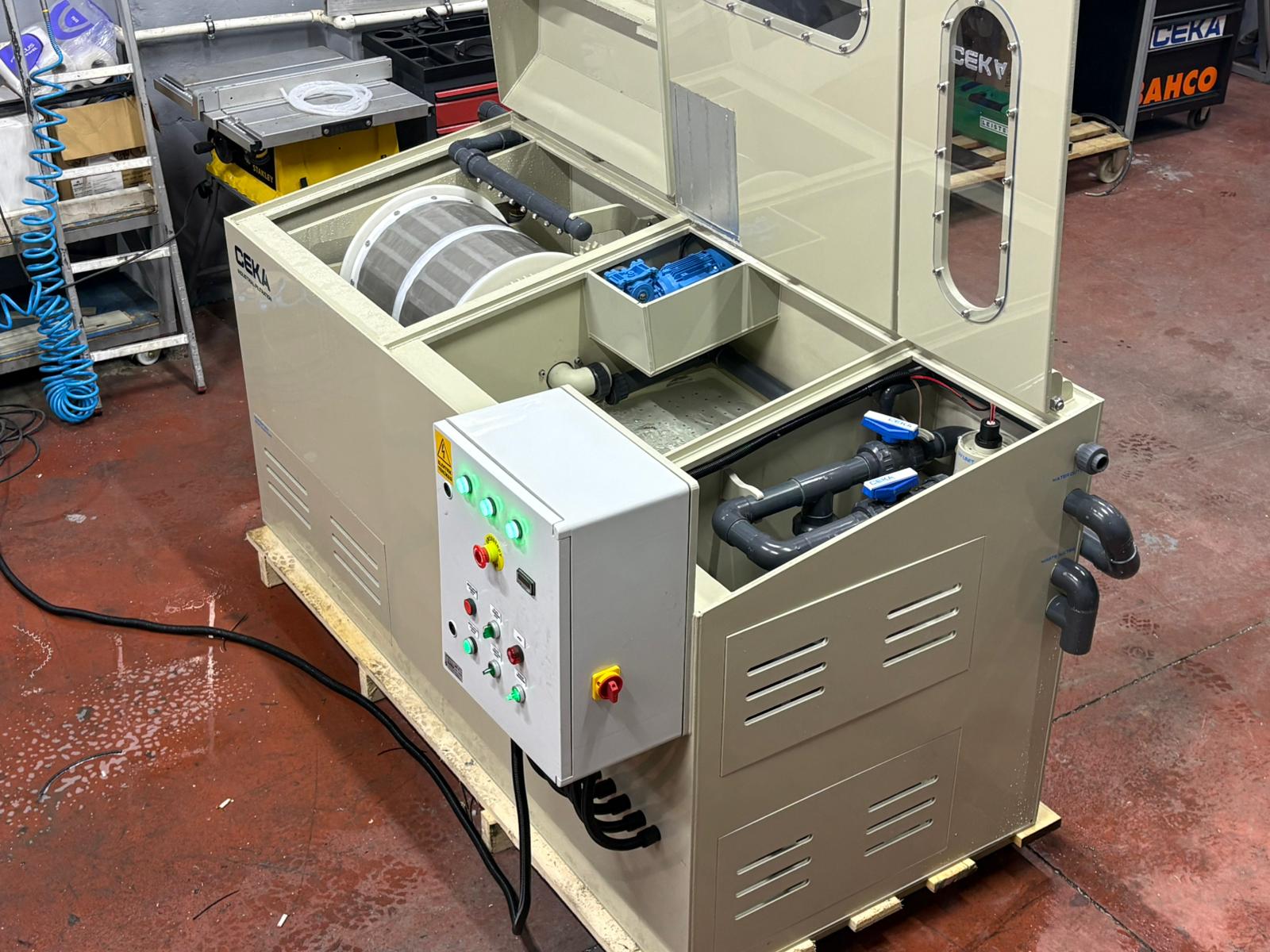

Freshwater Compact Systems
CEKA FWCS Series is a compact water conditioning system optimized for trout and other freshwater fish farming.
In this model, a Bubble System is integrated instead of a Protein Skimmer. This increases the oxygen level in the water while removing harmful gases.
| TECHNICAL SPECIFICATIONS | FWCS5-M | FWCS10-M |
|---|---|---|
| System Capacity | 5 - 8 m³/h | 10 - 15 m³/h |
| Gas Removal | Bubble System | Bubble System |
| Biological Volume | 180 Liters | 350 Liters |
| Total Power | 0.35 kW | 0.55 kW |
| Dimensions (LxWxH) | 1450x850x1400 mm | 1850x1050x1500 mm |

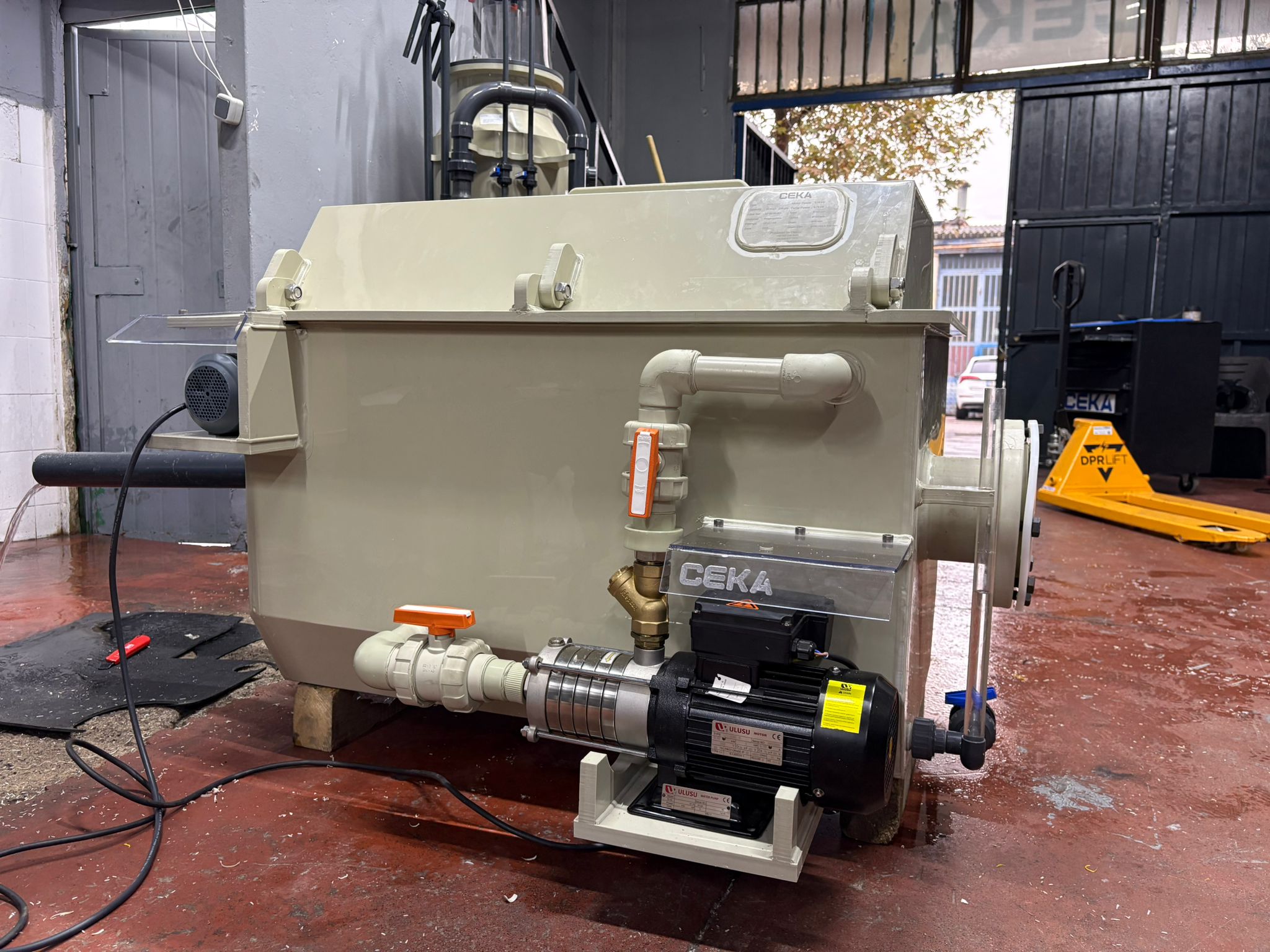

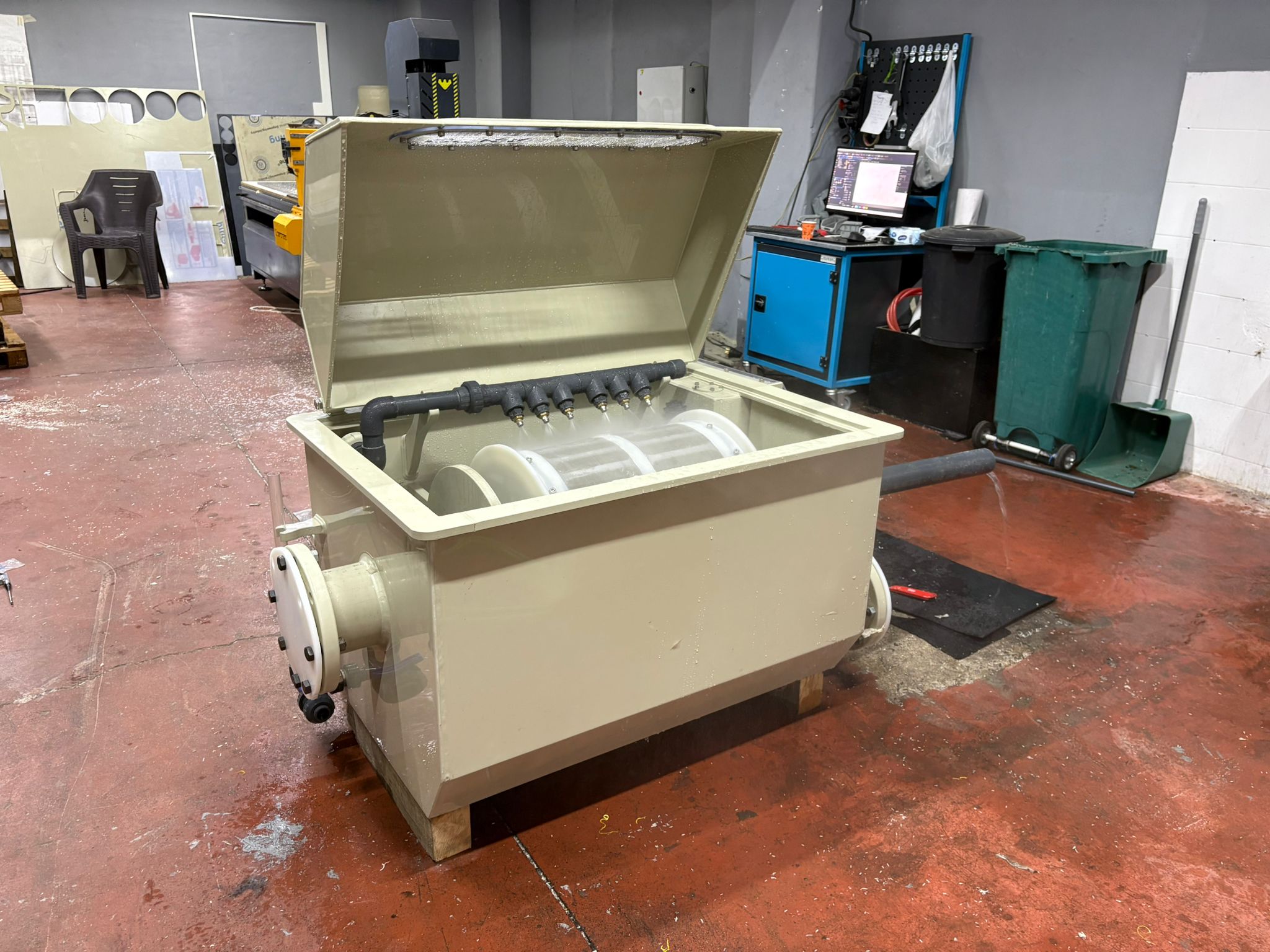

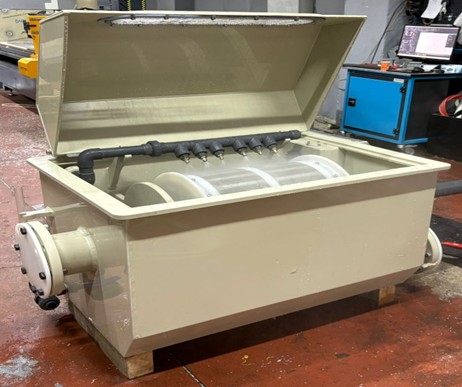

Rotary Drum Filters (CKDRM)
CEKA Drum Filters are mechanical filtration systems that most effectively separate solid particles in water at micron levels (20-100µ).
Thanks to the fully automatic control panel, sensors detect the water level and clean the filter screens with automatic backwash. This ensures continuous system operation and maximum water quality at all times.
Screen micron selection is determined by fish species and feeding intensity.
| MODEL | CKDRM20 | CKDRM50 | CKDRM100 | CKDRM200 |
|---|---|---|---|---|
| Capacity (m³/h) | 20 - 30 | 50 - 65 | 100 - 130 | 200 - 250 |
| Screen Size | 20 - 40 - 60 - 100 - 250 Micron (Optional) | |||
| Inlet / Outlet | DN110 / DN110 | DN160 / DN160 | 2x DN160 / DN200 | 2x DN200 / DN250 |
| Power Consumption (Low Energy) | 0.18 kW | 0.18 kW | 0.37 kW | 0.75 kW |
| Dimensions (LxWxH) | 950x650x700 | 1150x850x900 | 1450x1050x1100 | 1850x1250x1300 |

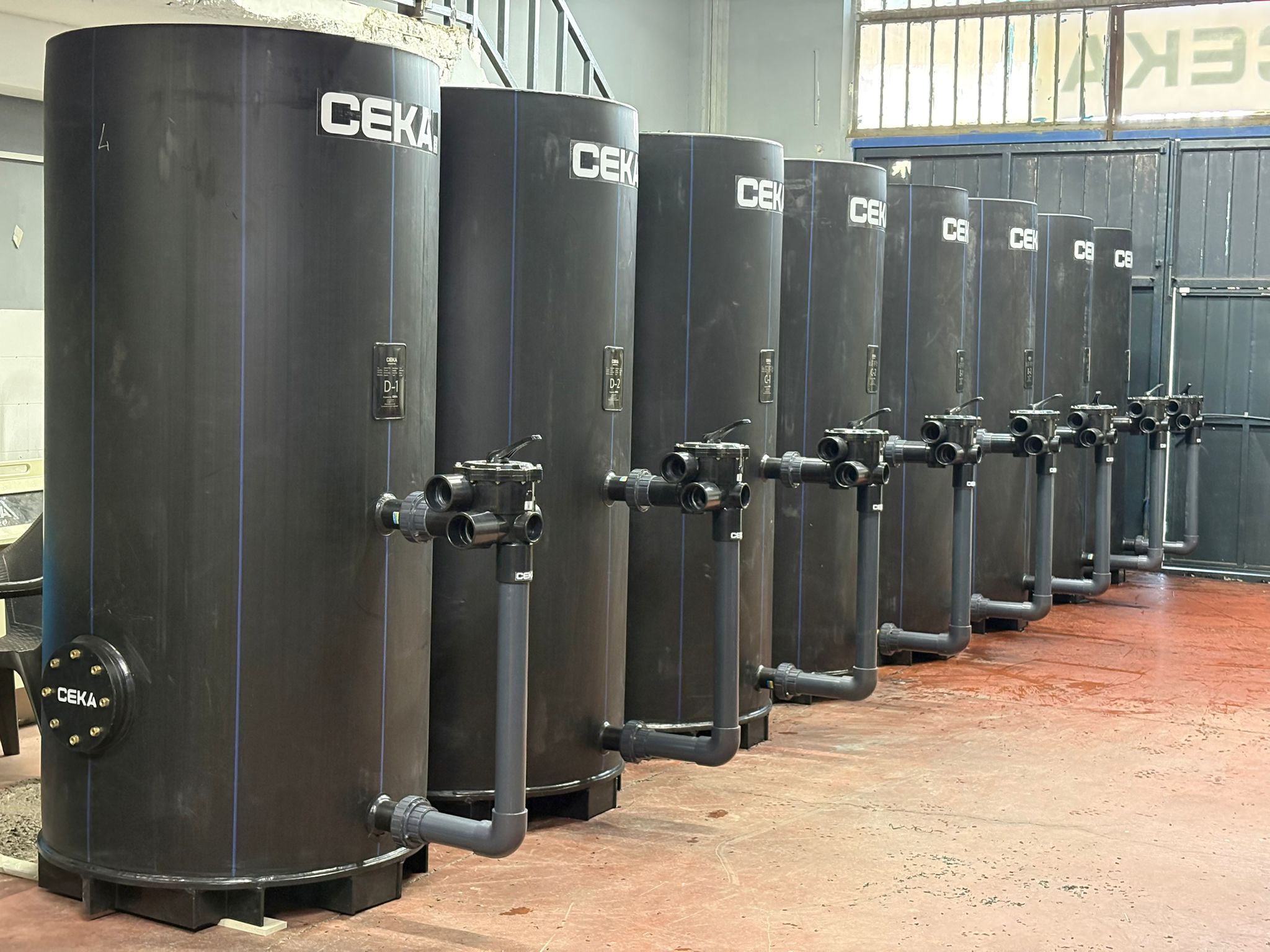

Polyethylene Sand Filters
CEKA BSF Series are high-efficiency mechanical filtration systems that remove suspended solids (TSS) and sediments from water by passing them through layers of natural quartz sand.
Thanks to its corrosion-resistant thermoplastic structure, it can be safely used in saltwater and aggressive chemical environments. Backwash and rinsing operations are easily performed with the user-friendly multi-port valve system. It is generally used as a support after drum or cartridge filtration.
| MODEL | BSF-400 | BSF-600 | BSF-800 | BSF-1000 |
|---|---|---|---|---|
| Filtration Capacity | 1 - 10 m³/h | 10 - 20 m³/h | 20 - 35 m³/h | 35 - 100 m³/h |
| Body Material | High-Density Polyethylene (HDPE) | |||
| Control Unit | 1½" Six-Way Valve (Manual / Automatic Option) |
1½" Six-Way Valve (Manual / Automatic Option) |
2" Six-Way Valve (Manual / Automatic Option) |
3" Valve Group (Manual / Automatic Option) |
| Sand Capacity | 50 kg | 150 kg | 350 kg | 1200 kg |

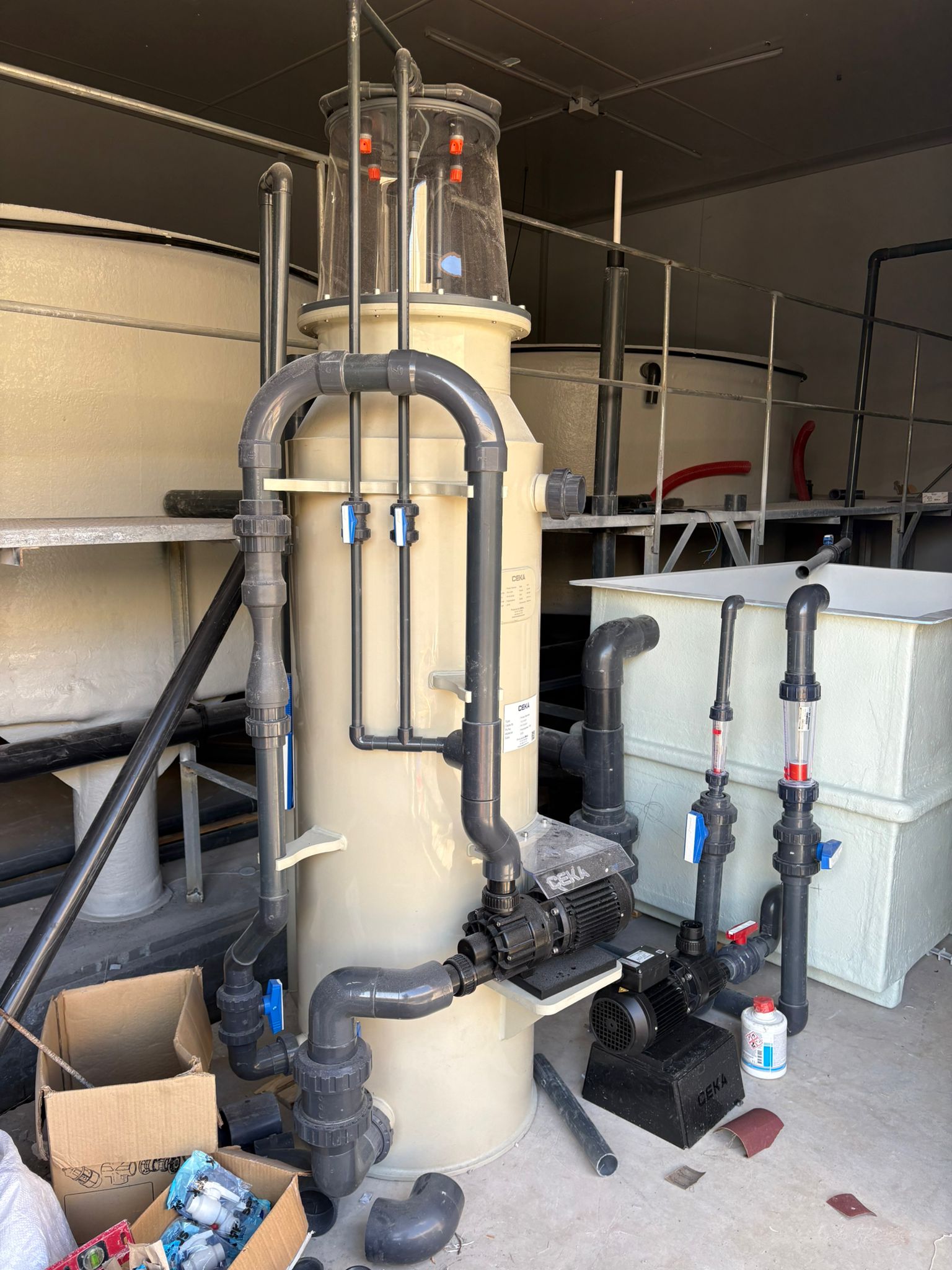

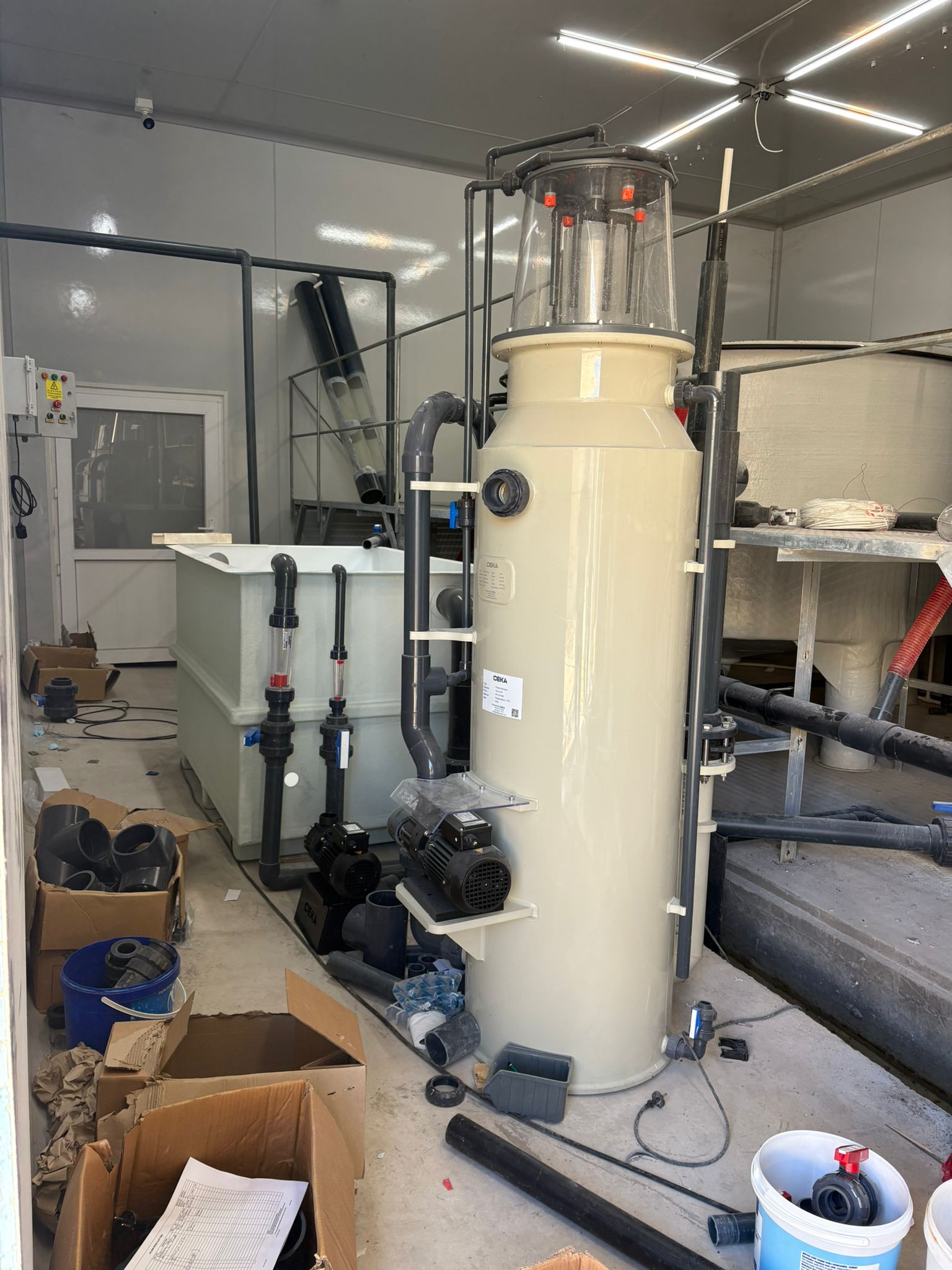

Capacity Range: 5 - 160 m³/h

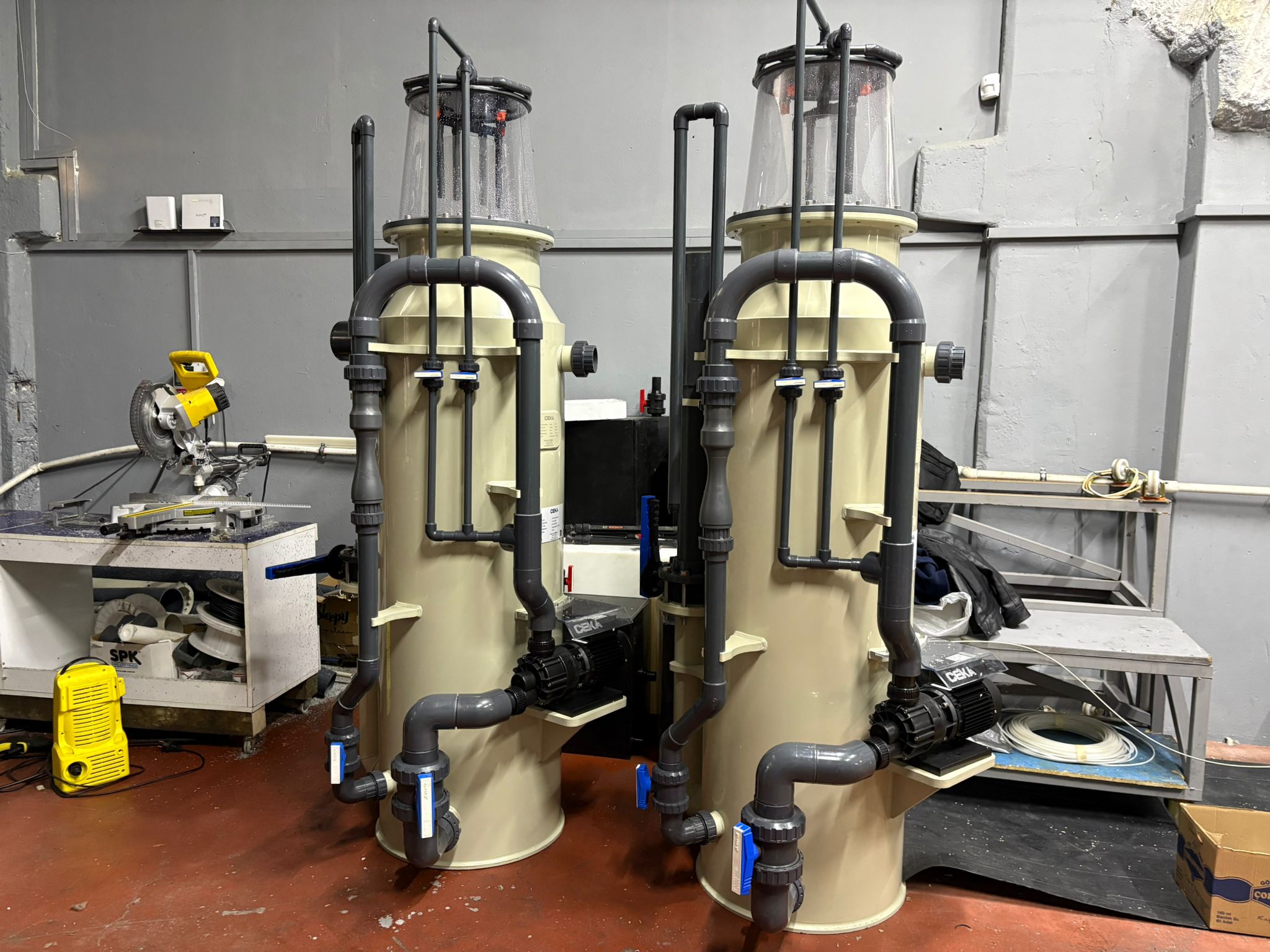

High-efficiency mechanical filtration systems that remove organic waste, proteins and fine particles from water using the foam fractionation method. With a wide range of capacity options, it offers ideal solutions for hatcheries, quarantine tanks, research centers and small-scale commercial enterprises. The ozone-compatible body structure increases disinfection efficiency.
| Model | Volume | Diameter | Cap. (1.5min) | Cap. (2.0min) | Power | Inlet / Outlet | Material |
|---|---|---|---|---|---|---|---|
| PS-5 | 140 Lt | Ø440 | 5 m³/h | 4.2 m³/h | 0.45 kW | Ø50 / Ø63 | PP |
| PS-10 | 300 Lt | Ø500 | 10 m³/h | 9 m³/h | 0.69 kW | Ø63 / Ø75 | PP |
| PS-20 | 550 Lt | Ø700 | 20 m³/h | 16.5 m³/h | 0.69 kW | Ø90 / Ø125 | PP |
| PS-30 | 800 Lt | Ø800 | 30 m³/h | 24 m³/h | 0.97 kW | Ø90 / Ø125 | PP |
| PS-40 | 1100 Lt | Ø800 | 40 m³/h | 33 m³/h | 0.97 kW | Ø110 / Ø160 | PP |
| PS-80 | 2100 Lt | Ø1150 | 80 m³/h | 63 m³/h | 1.42 kW | Ø160 / Ø250 | PP |
| PS-100 | 2600 Lt | Ø1300 | 100 m³/h | 78 m³/h | 1.94 kW | Ø200 / Ø250 | PP |
| PS-120 | 3200 Lt | Ø1350 | 120 m³/h | 96 m³/h | 3.9 kW | Ø200 / Ø280 | PP |
| PS-160 | 4200 Lt | Ø1430 | 160 m³/h | 126 m³/h | 3.9 kW | Ø225 / Ø315 | PP |
Capacity Range: 200 - 800 m³/h
Designed for adaptation systems, grow-out tanks, broodstock management and large-scale RAS projects requiring high-capacity water treatment. Fully automatic wash head, foam level sensors and PLC integration are optional.
Contact us for special flow rates and dimensions.
| Model | Volume | Diameter | Cap. (1.5min) | Cap. (2.0min) | Power | Inlet / Outlet | Material |
|---|---|---|---|---|---|---|---|
| PS-200 | 5200 Lt | Ø1580 | 200 m³/h | 156 m³/h | 3.9 kW | Ø225 / Ø315 | PP |
| PS-250 | 6300 Lt | Ø1750 | 250 m³/h | 190 m³/h | 5.1 kW | Ø280 / Ø355 | PP |
| PS-300 | 7600 Lt | Ø1900 | 300 m³/h | 225 m³/h | 5.1 kW | Ø280 / Ø355 | PP |
| PS-350 | 9000 Lt | Ø2050 | 350 m³/h | 270 m³/h | 6.9 kW | Ø315 / Ø400 | PP |
| PS-450 | 11500 Lt | Ø2200 | 400 m³/h | 345 m³/h | 6.9 kW | Ø355 / Ø400 | PP |
| PS-600 | 15500 Lt | Ø2500 | 600 m³/h | 465 m³/h | 9.5 kW | Ø355 / Ø400 | PP |
| PS-800 | 19000 Lt | Ø2750 | 800 m³/h | 570 m³/h | 13.65 kW | Ø400 / Ø400 | PP |

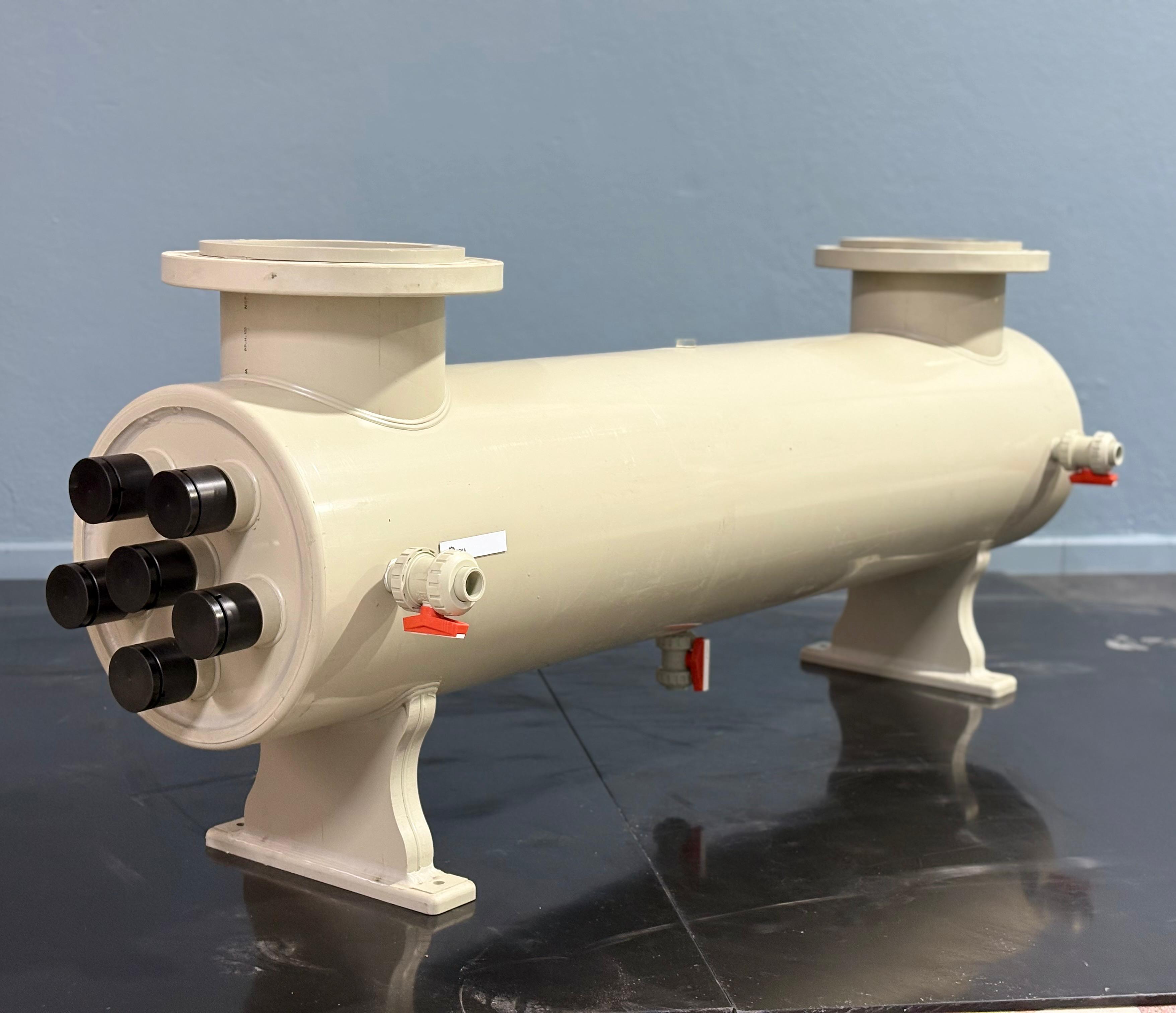

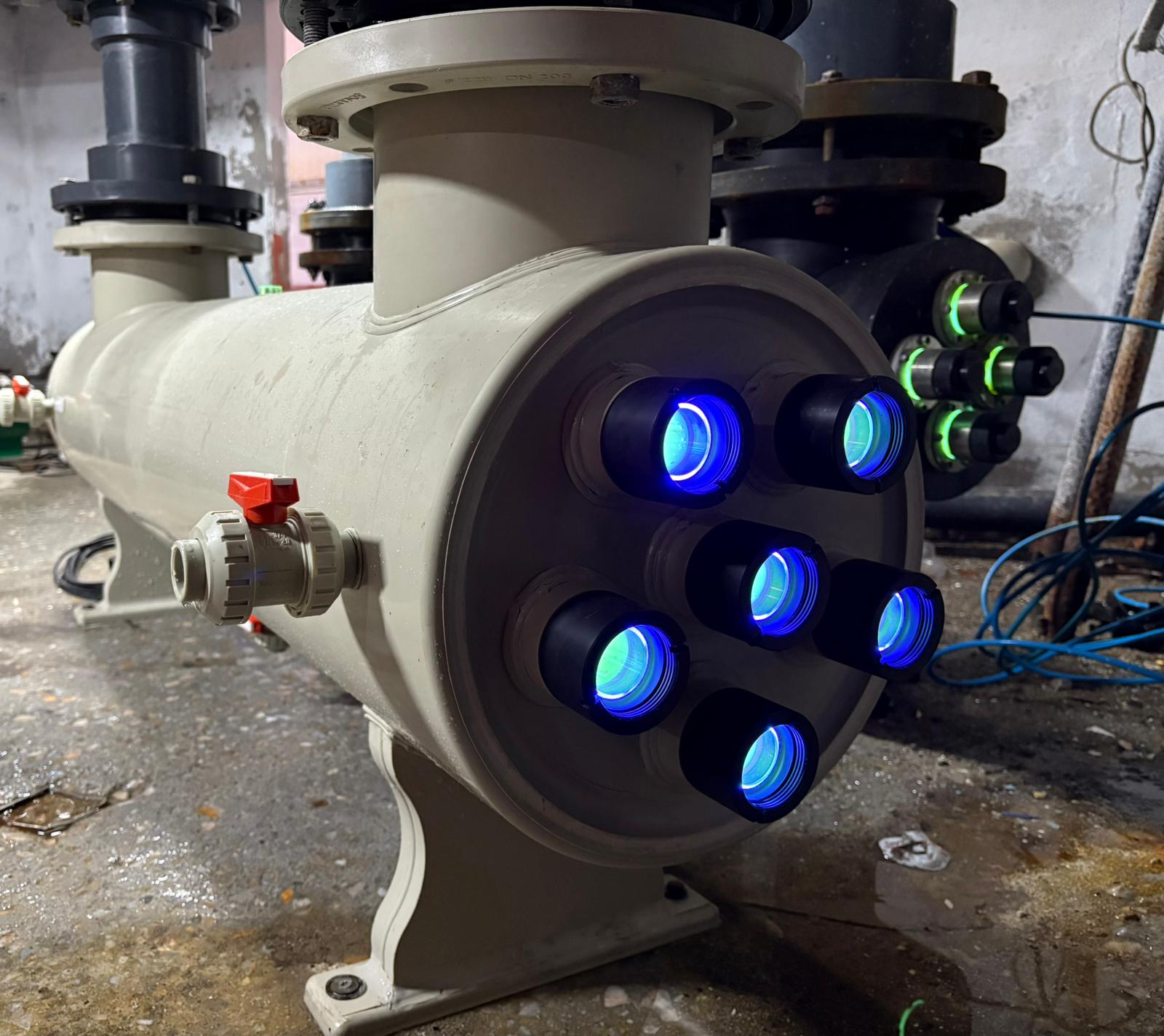

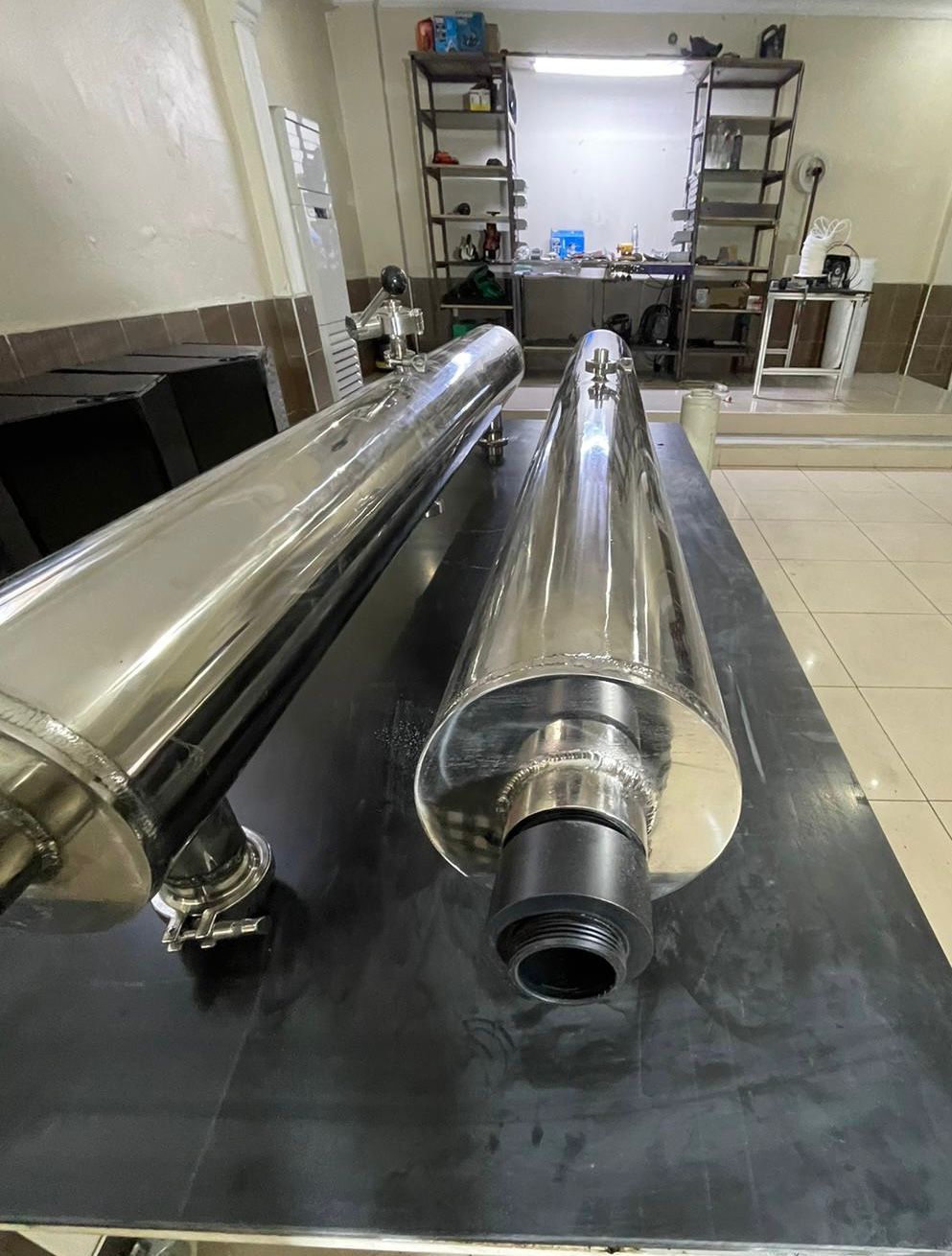

Ultraviolet Sterilization Technology
CEKA UV Disinfection Systems provide microbiological treatment of water without the use of chemicals. UV-C rays at 254 nm wavelength disrupt the DNA structure of bacteria, viruses and other microorganisms, rendering them ineffective.
Produced with corrosion-resistant Polypropylene (PP) or high-pressure resistant AISI 304 / 316 Stainless Steel body options. Safely used in drinking water, process water, wastewater and aquaculture facilities.
Our systems are designed to provide optimum dosage and contact time. Optionally, they can be integrated with a density sensor and automation panel.
| TECHNICAL SPECIFICATION | VALUE | DESCRIPTION |
|---|---|---|
| Flow Capacity | 5 - 1000 m³/h | Project-based custom production |
| UV-C Dose | 30 - 400 mJ/cm² | Variable dosage according to application |
| Lamp Life | 9.000 - 12.000 Hours | High-efficiency Amalgam lamps |
| Body Material | PP / AISI 304 / 316 | Selection according to project requirements |
| Operating Temperature | 0°C ... +45°C | Thermoplastic body limit |

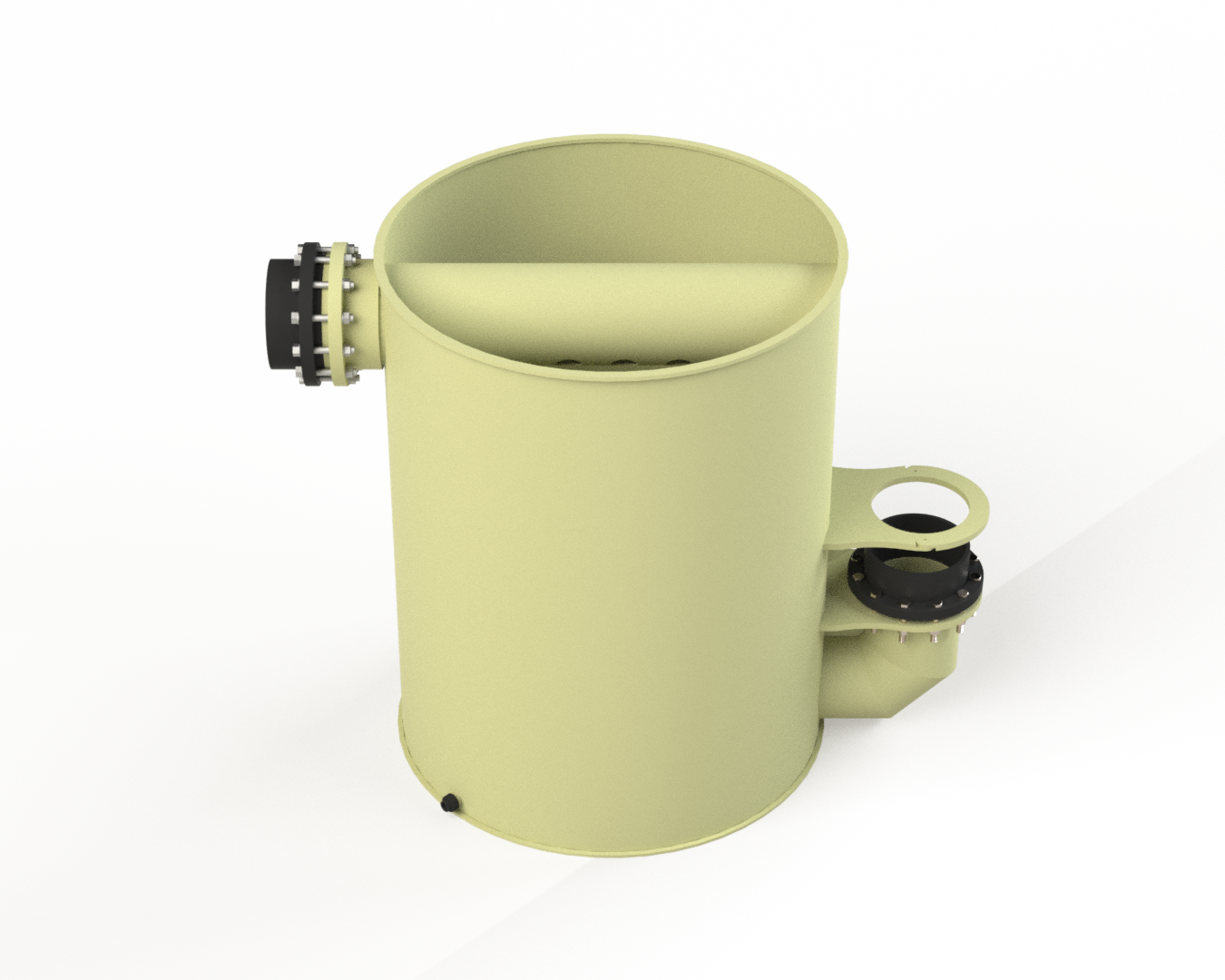

CEKA MBBR provides a high surface area 800–1200 m²/m³ thanks to the use of special biomedia. It does not clog with moving bed technology.

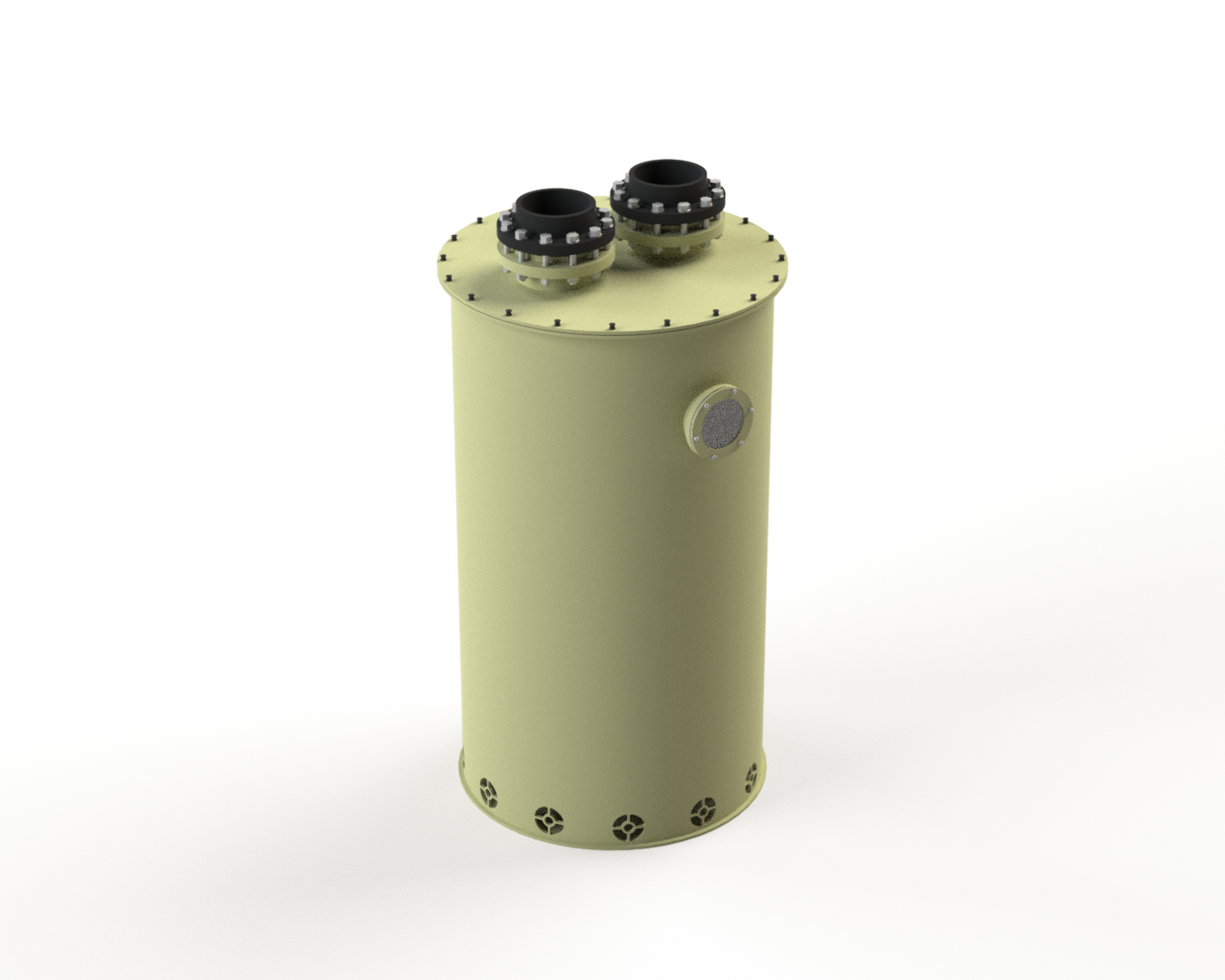

CEKA Biotower are tower-type filters that provide aeration by dripping water from a height. Ideal for CO2 removal and oxygen saturation.
BIOFOX-05, with its special formulation and geometry, provides rapid biofilm formation within 5-15 days.
| Feature | Value |
|---|---|
| Size | 10x7 mm |
| Density | 0.96 g/cm³ |
| Lifespan | >10 Years |

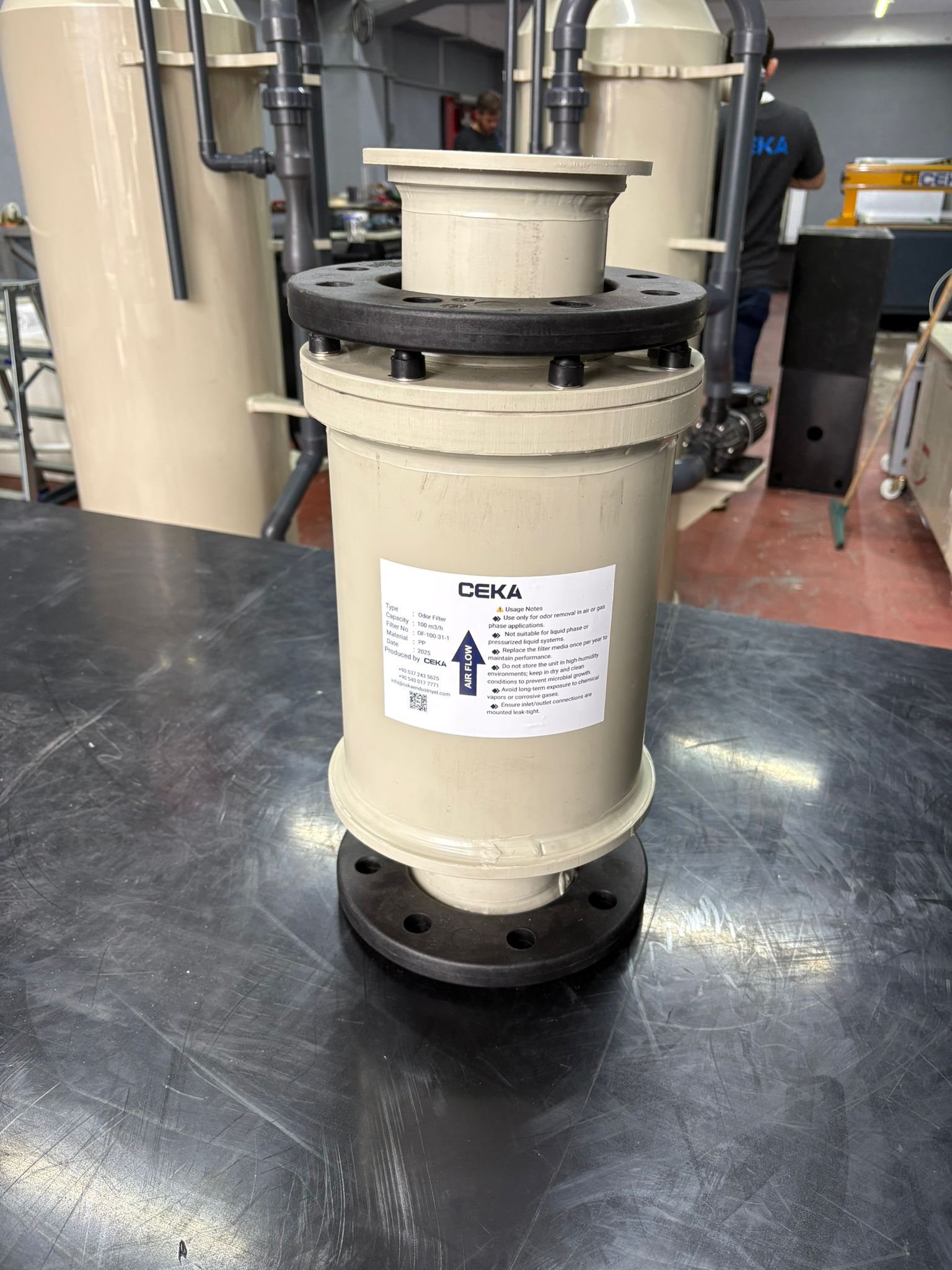

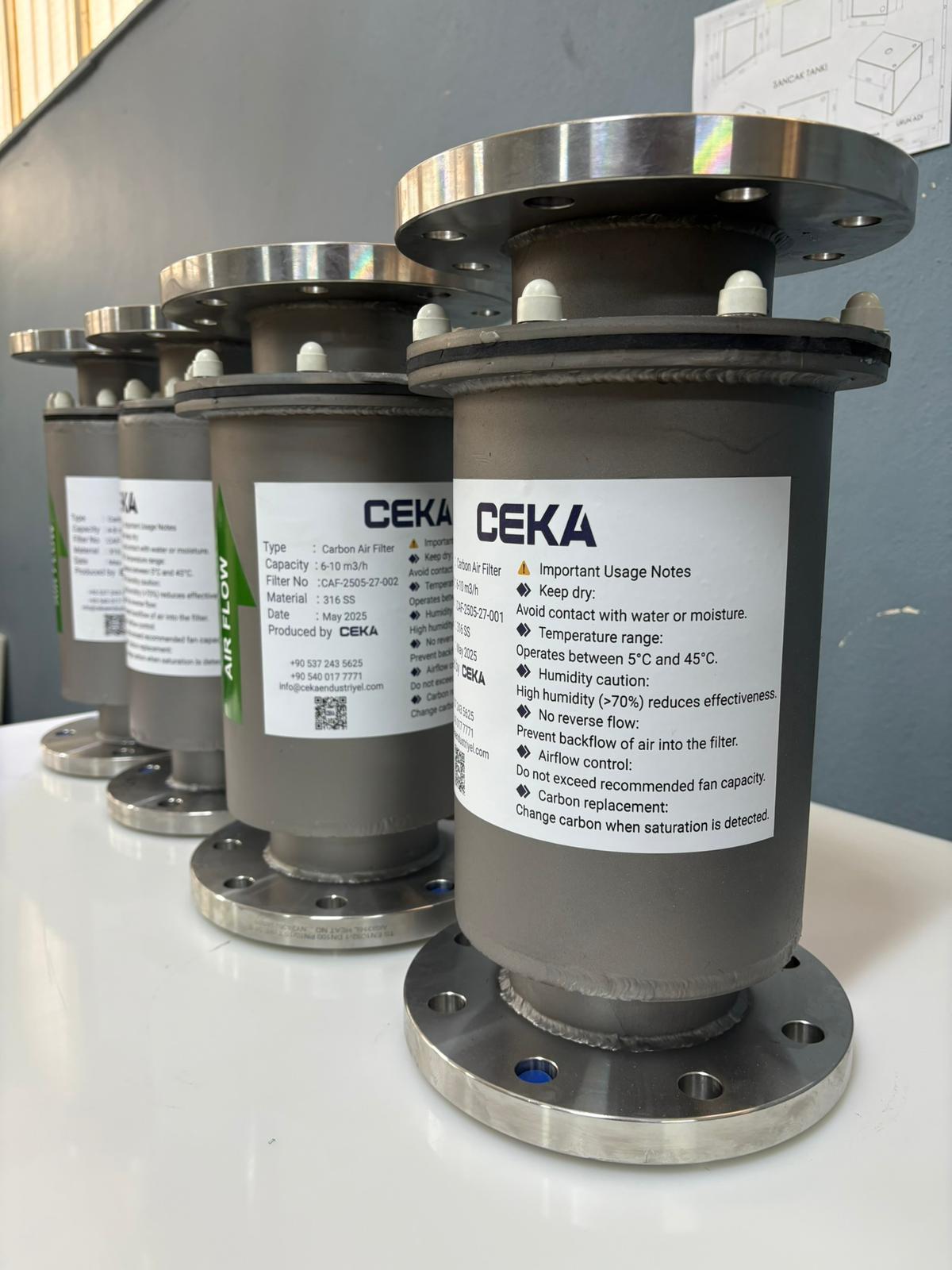

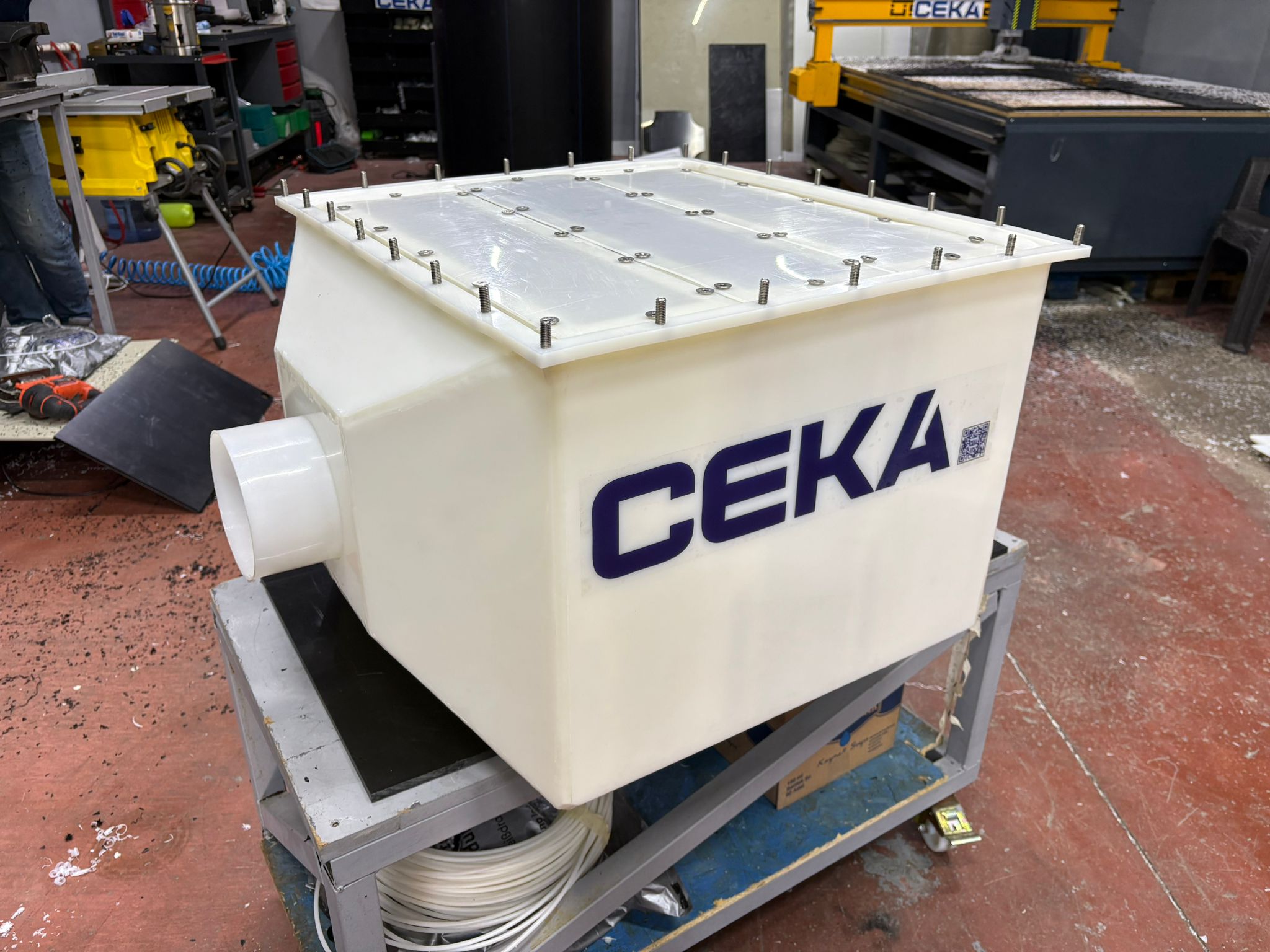

Industrial Gas and Odor Removal

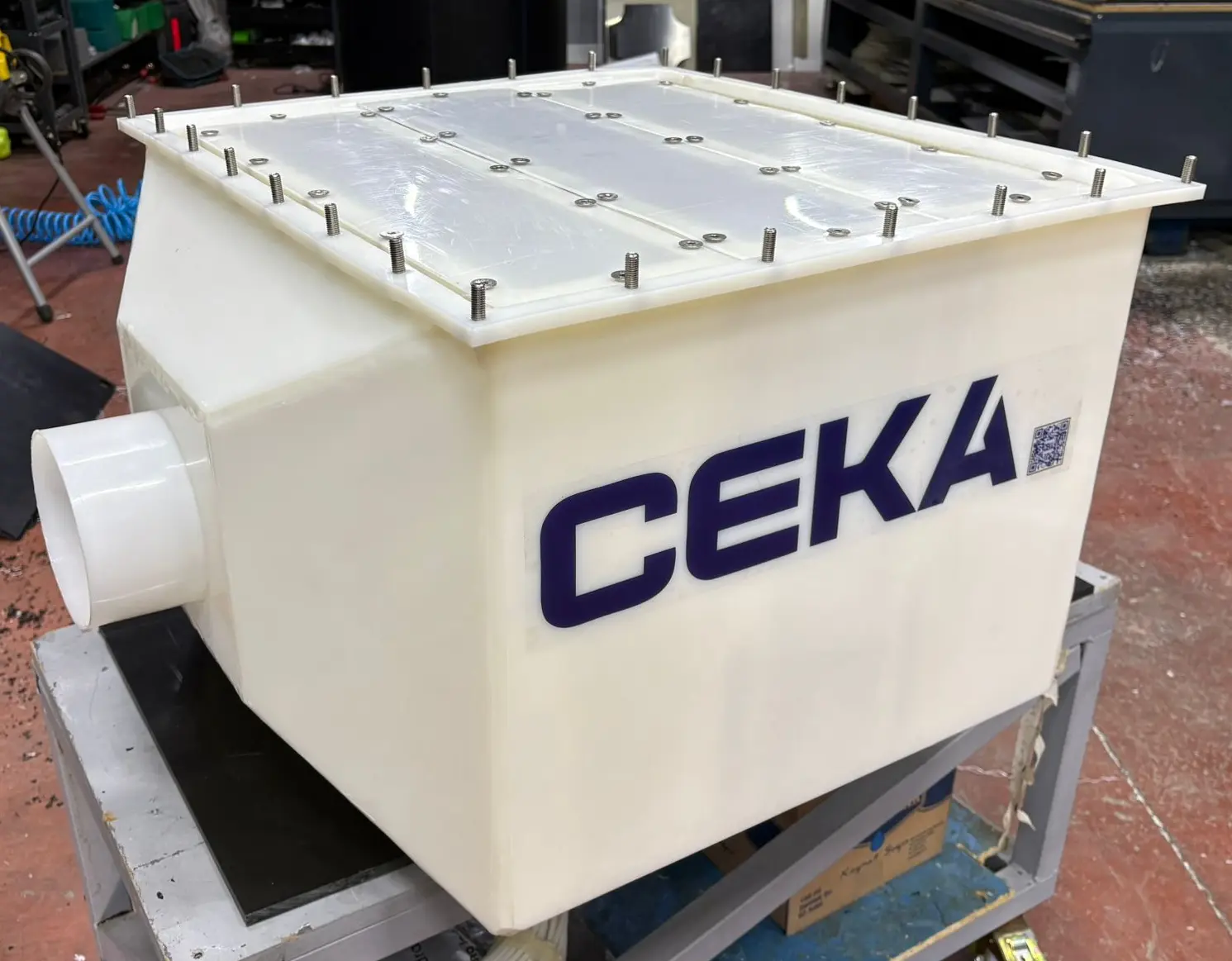

CEKA Activated Carbon Filters are high-efficiency systems used for the removal of harmful gases, volatile organic compounds (VOCs) and unpleasant odors in industrial facilities.
They are produced in Pipe Type (Cylindrical) or Cassette Modular structures according to need. Thanks to activated carbon granules with a high surface area, they provide maximum adsorption and filtration. The body material for corrosive gases is selected according to project requirements.
| TECHNICAL SPECIFICATIONS | PIPE TYPE (CYLINDRICAL) | CASSETTE MODULAR TYPE |
|---|---|---|
| Capacity Range | 1 - 100 m³/h | 100 - 400 m³/h (and above) |
| Body Material | PP / PE / PVC / AISI 316 (Stainless) | |
| Filter Media | Pellet / Granular Activated Carbon | Cassette Cartridge Carbon |
| Application Area | Spot Suction, Tank Ventilation, Acid Tanks | Central Ventilation, Large Volume Odor Removal |
| Gas Removal | H2S, NH3, Acid Vapors | VOC, Solvent, Intense Odor |
* Custom production is made in the requested dimensions and inlet-outlet diameters.
Drum filters are the most efficient mechanical filtration method that automatically removes solid particles in water up to 20 microns. Thanks to its self-cleaning structure, it reduces labor costs and keeps water quality consistently high. It is the heart of RAS systems.
Protein Skimmer (PS) is necessary to remove fine particles and dissolved organic matter from water, especially in saltwater systems and freshwater tanks with high organic load. It also supports aquatic life by increasing oxygen in the water.
UV (Ultraviolet) is safe and effective for standard pathogen disinfection. Ozone is a much stronger oxidant; it not only provides disinfection but also clarifies water, removes odors, and aids in nitrite/ammonia removal. In high-intensity facilities, both (Ozone + UV) are often used together.
Biological filter volume is calculated based on fish species, daily feeding amount (kg feed/day) and the surface area of the biomedia used (m²/m³). Insufficient biological volume can lead to ammonia and nitrite spikes, causing fish losses.
Storage, Mixing & Process Solutions
SECTION 02
Page 18
Correct material selection is the first step of engineering safety.
| CRITERION | POLYETHYLENE (PE) | POLYPROPYLENE (PP) | STAINLESS STEEL |
|---|---|---|---|
| Max. Temperature | 60°C | 90°C | 200°C+ |
| Acid Resistance | Excellent | Superior | Low (Varies by acid) |
| UV / Outdoor | Best (UV Stable) | Painting/Coating Required | Excellent |
| Custom Size | Unlimited (Welded) | Unlimited (Welded) | Unlimited (Welded) |
| Cost Index | Economical (₺) | Medium (₺₺) | High (₺₺₺) |

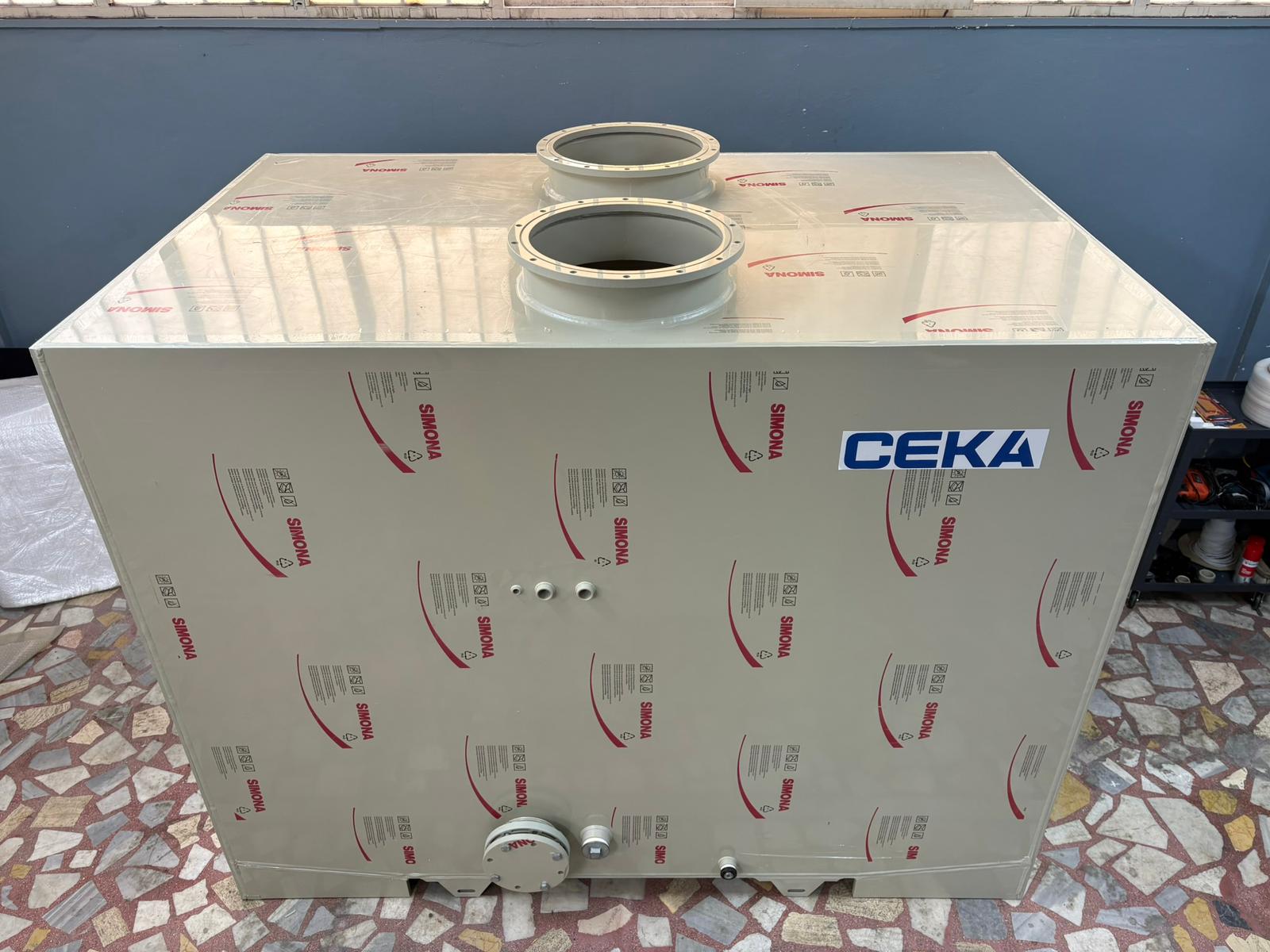

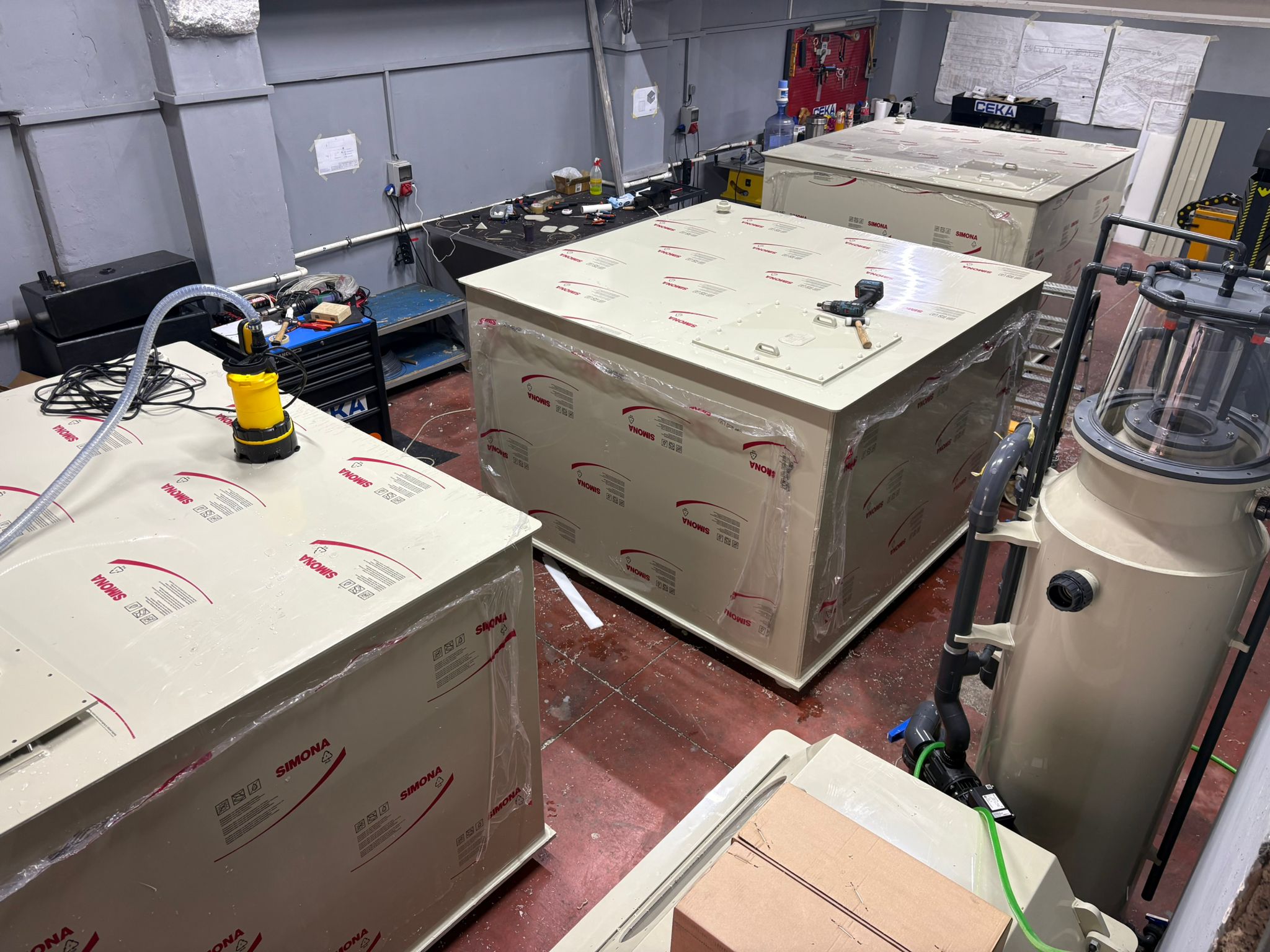

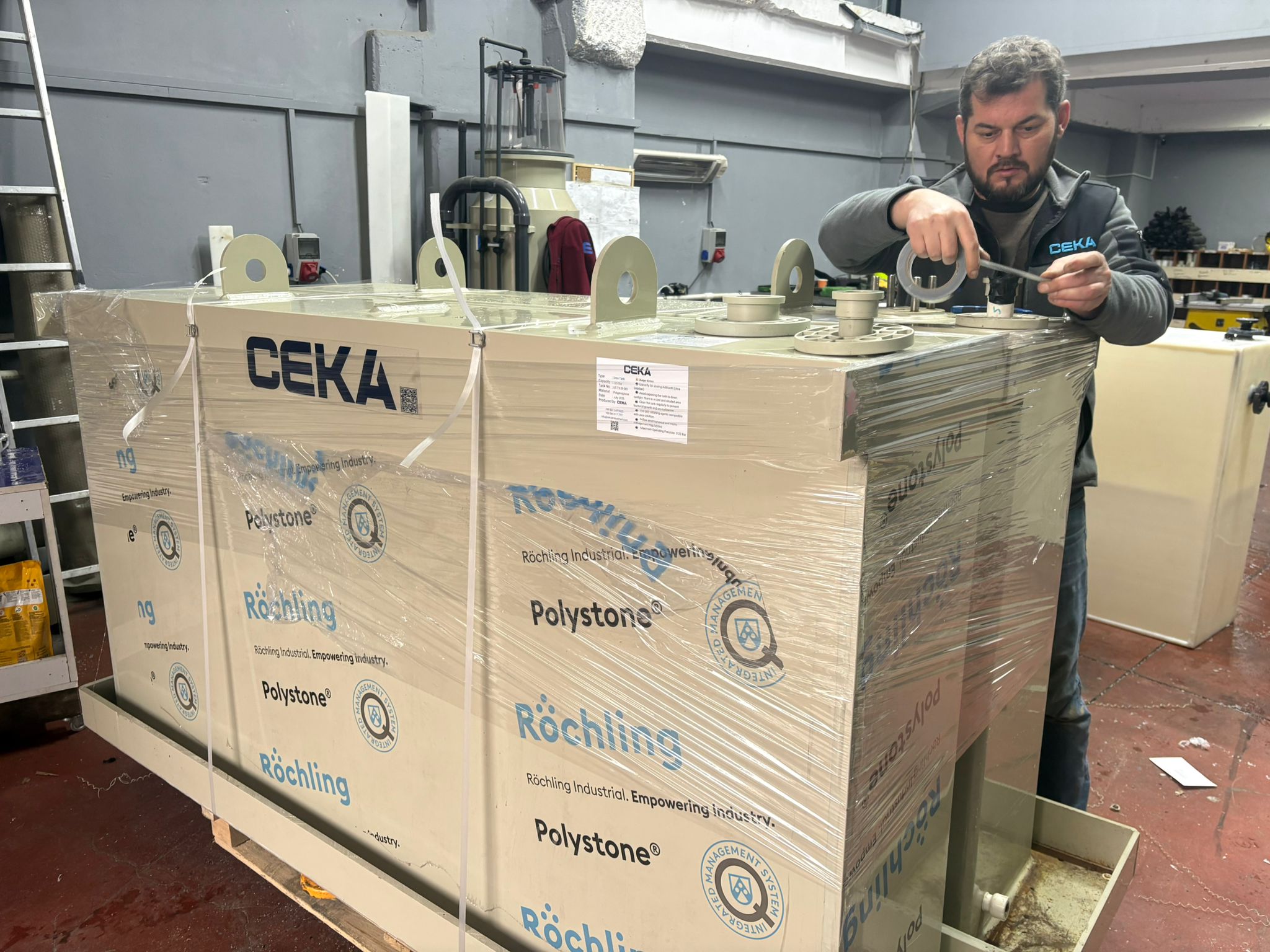

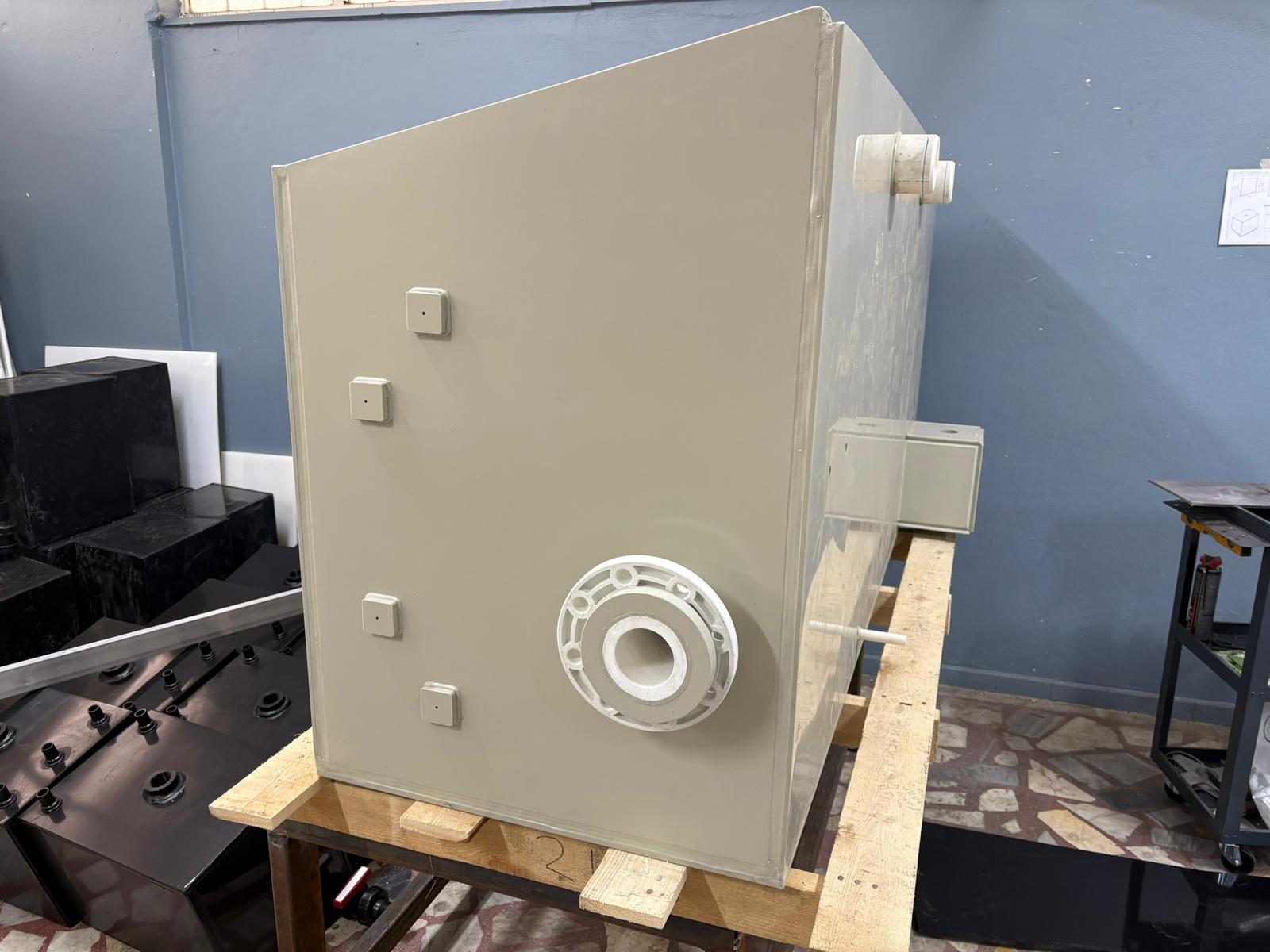

High Temperature and Chemical Resistance

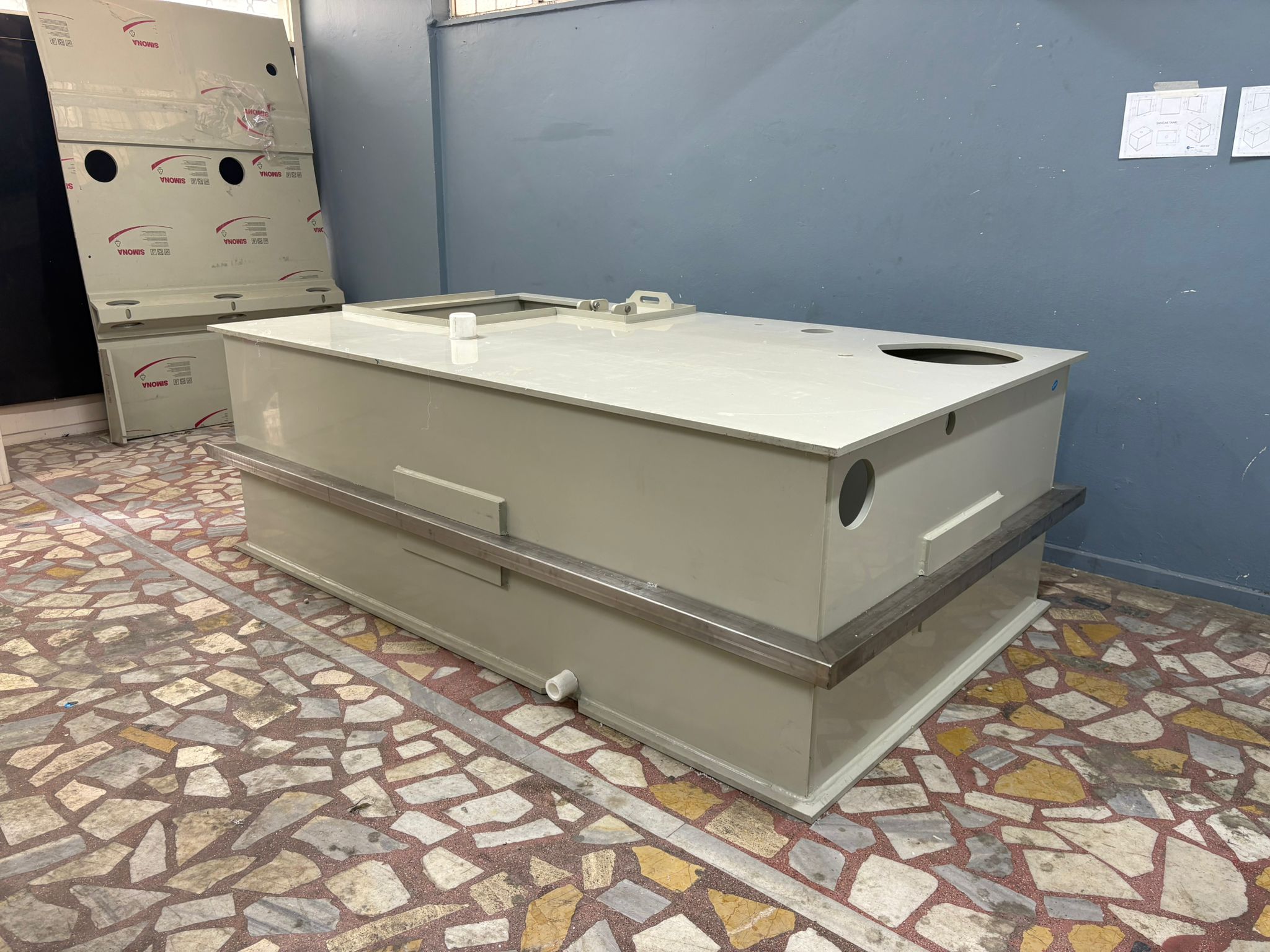

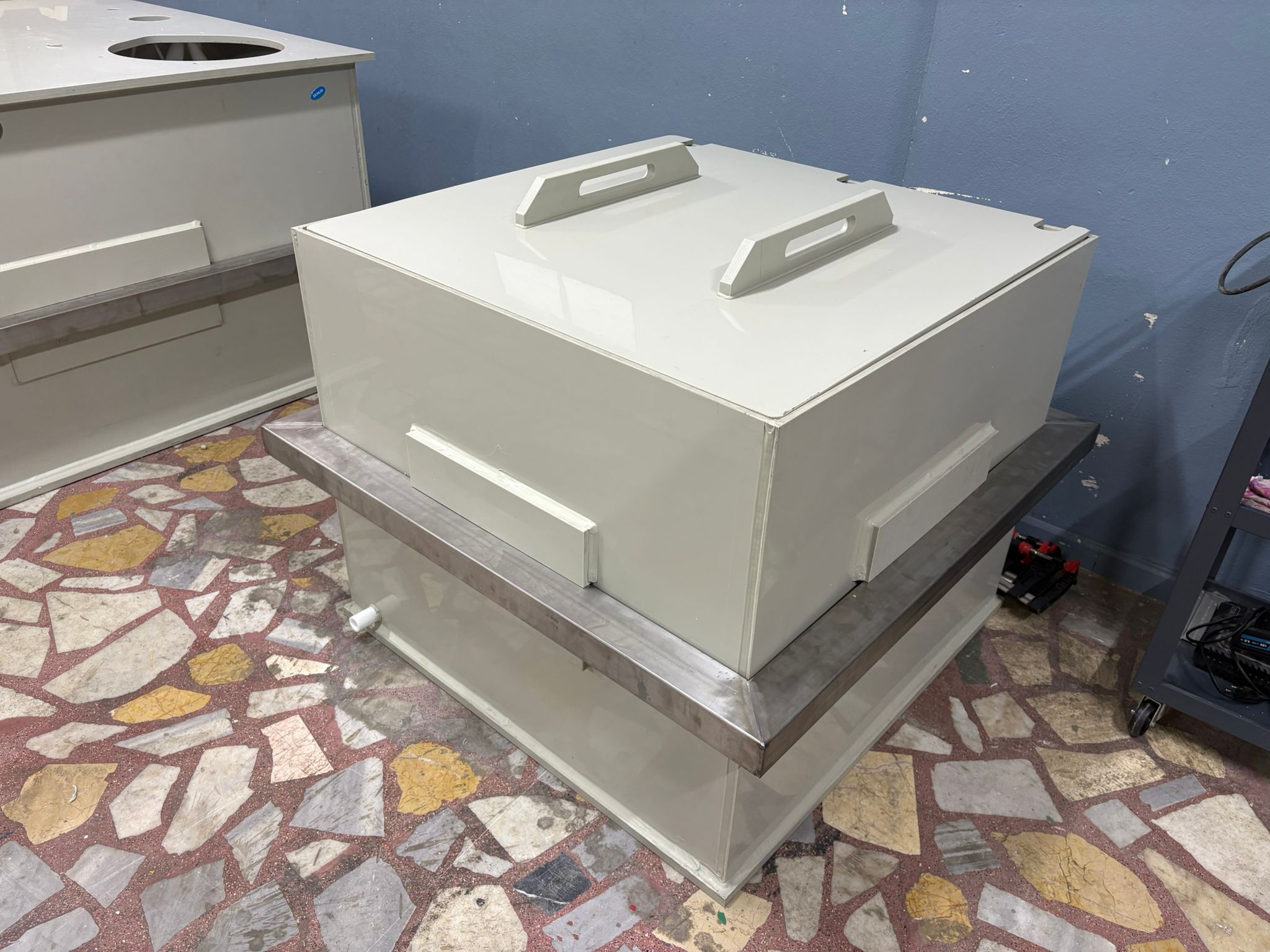

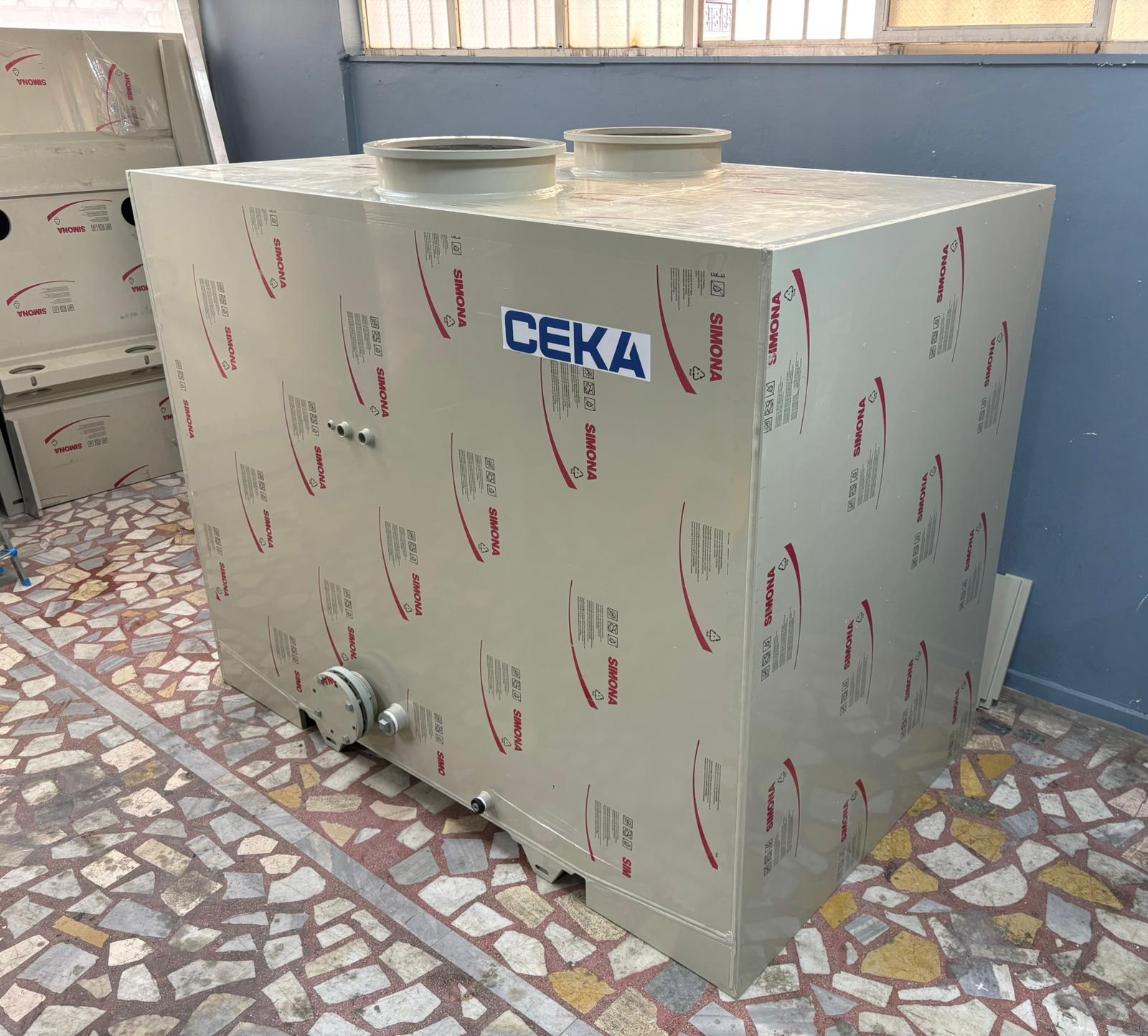

CEKA Polypropylene (PP) Tanks are safely used in demanding industrial processes thanks to their high chemical resistance and temperature resistance. They are especially preferred in acid storage, plating baths and treatment plants.

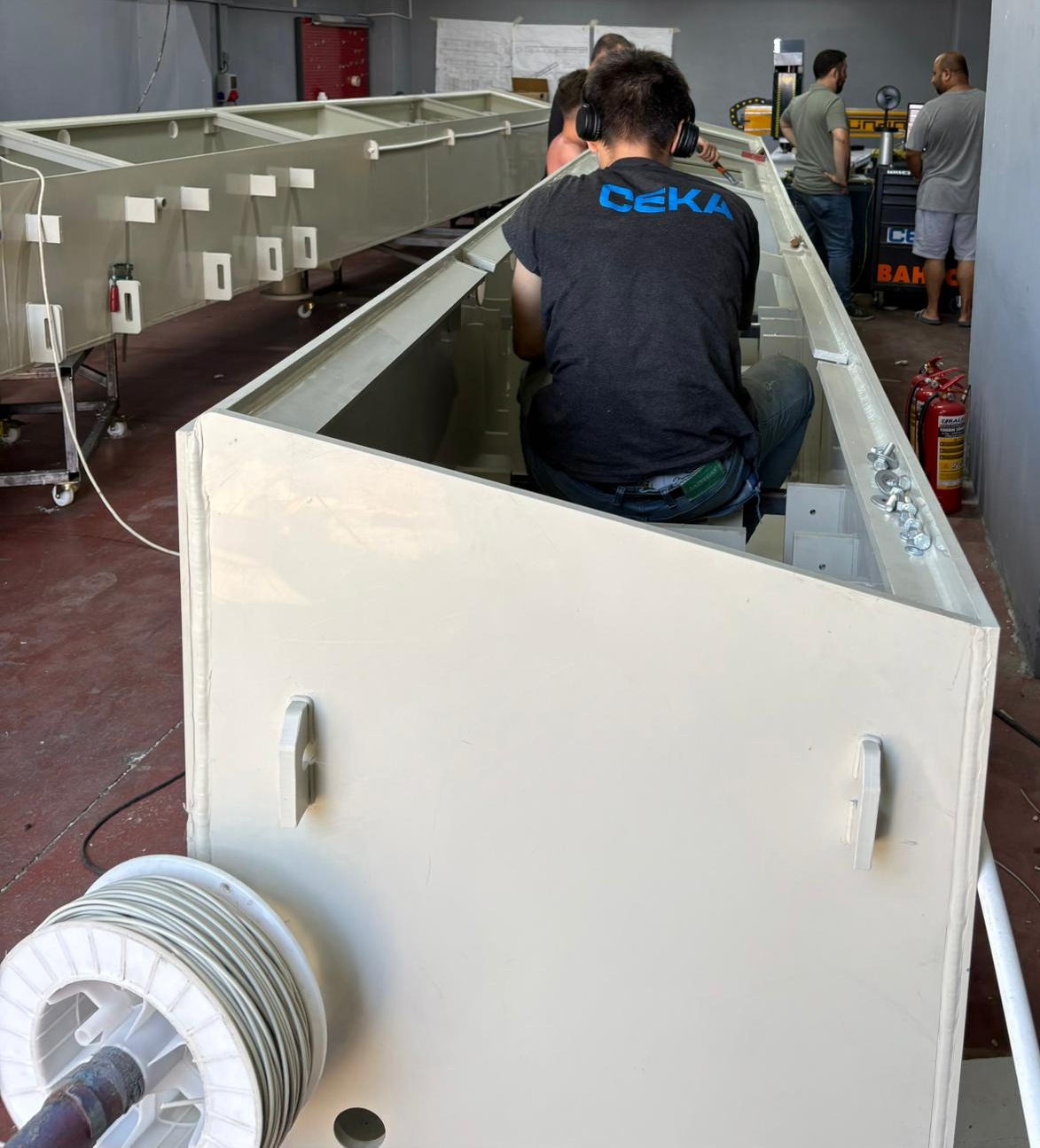

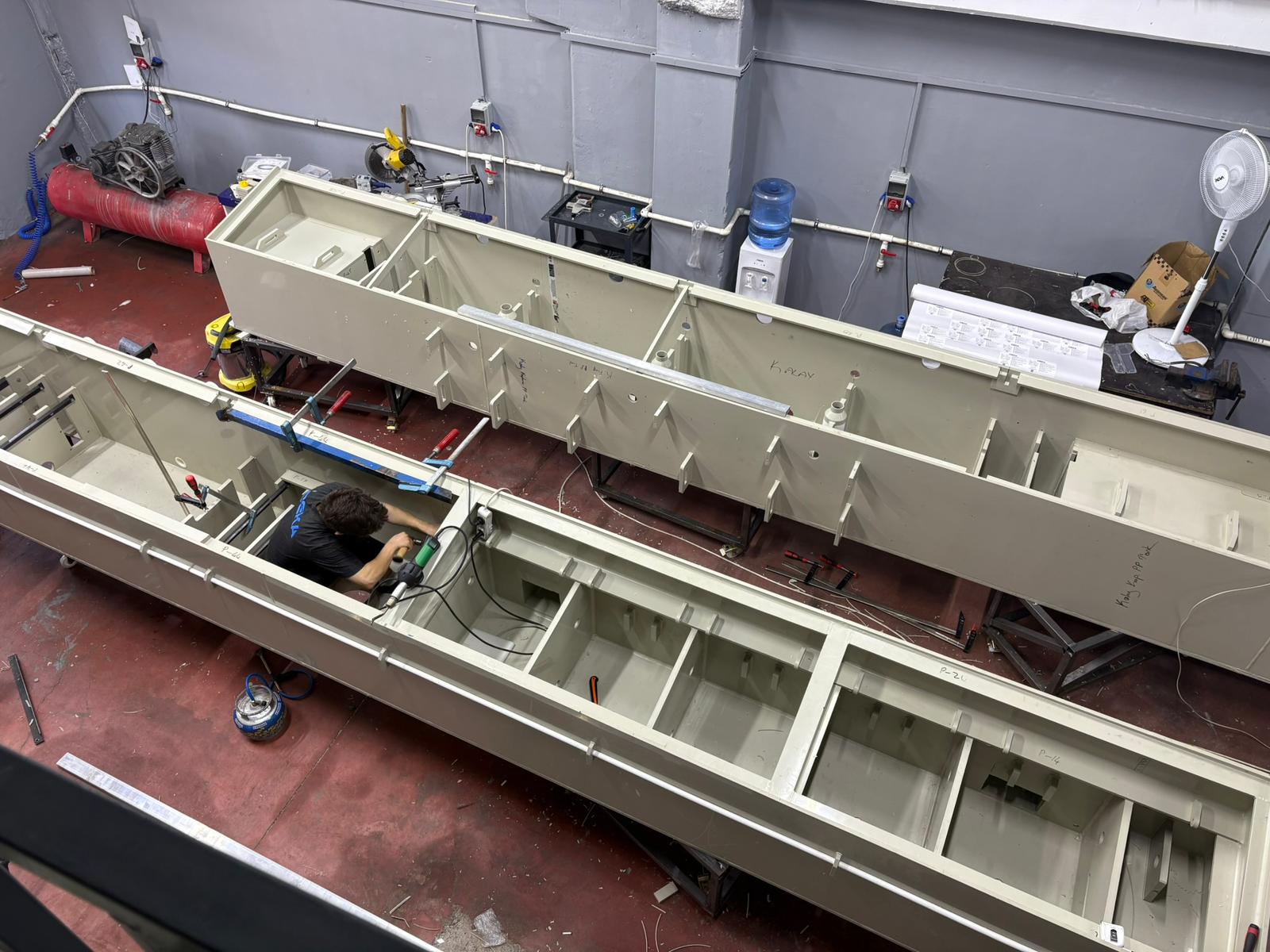

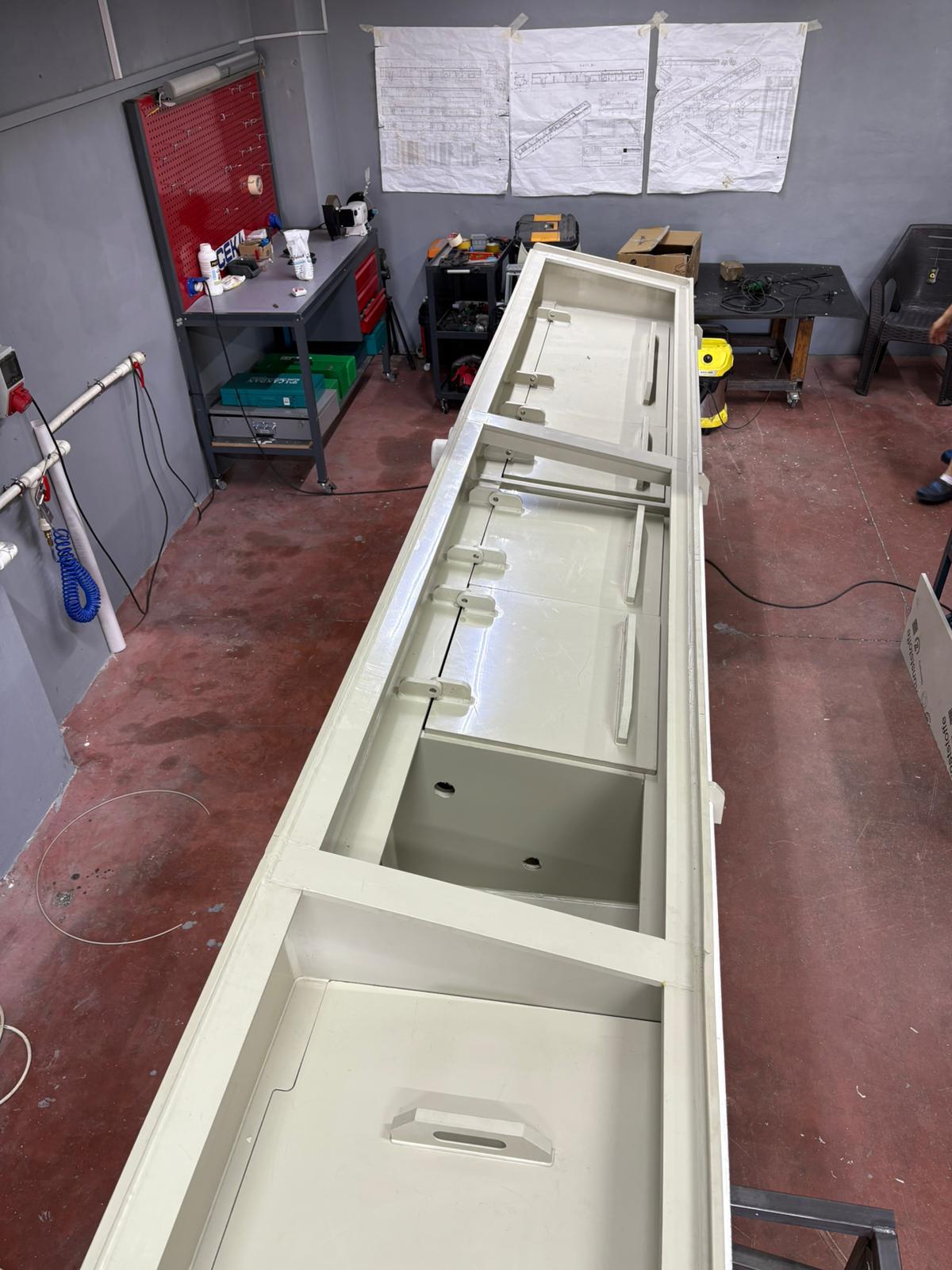

Our tanks, which are cut with a special CNC Router in the workshop environment and joined with extrusion welding within CEKA, offer a leak-proof guarantee. They can be manufactured with conical bottoms, coiled or with mixers according to need.
| TECHNICAL SPECIFICATION | VALUE | DESCRIPTION |
|---|---|---|
| Capacity Range | 30 Liters - 20 Tons | Larger capacities on request |
| Material | PP-H / PP-C | Polypropylene Homopolymer / Copolymer |
| Operating Temperature | 0°C ... +90°C | Continuous operating temperature |
| Manufacturing Method | CNC Cutting + Extrusion | Welding according to DVS 2207 standards |
| Type | Prismatic / Cylindrical | Design suitable for installation area |

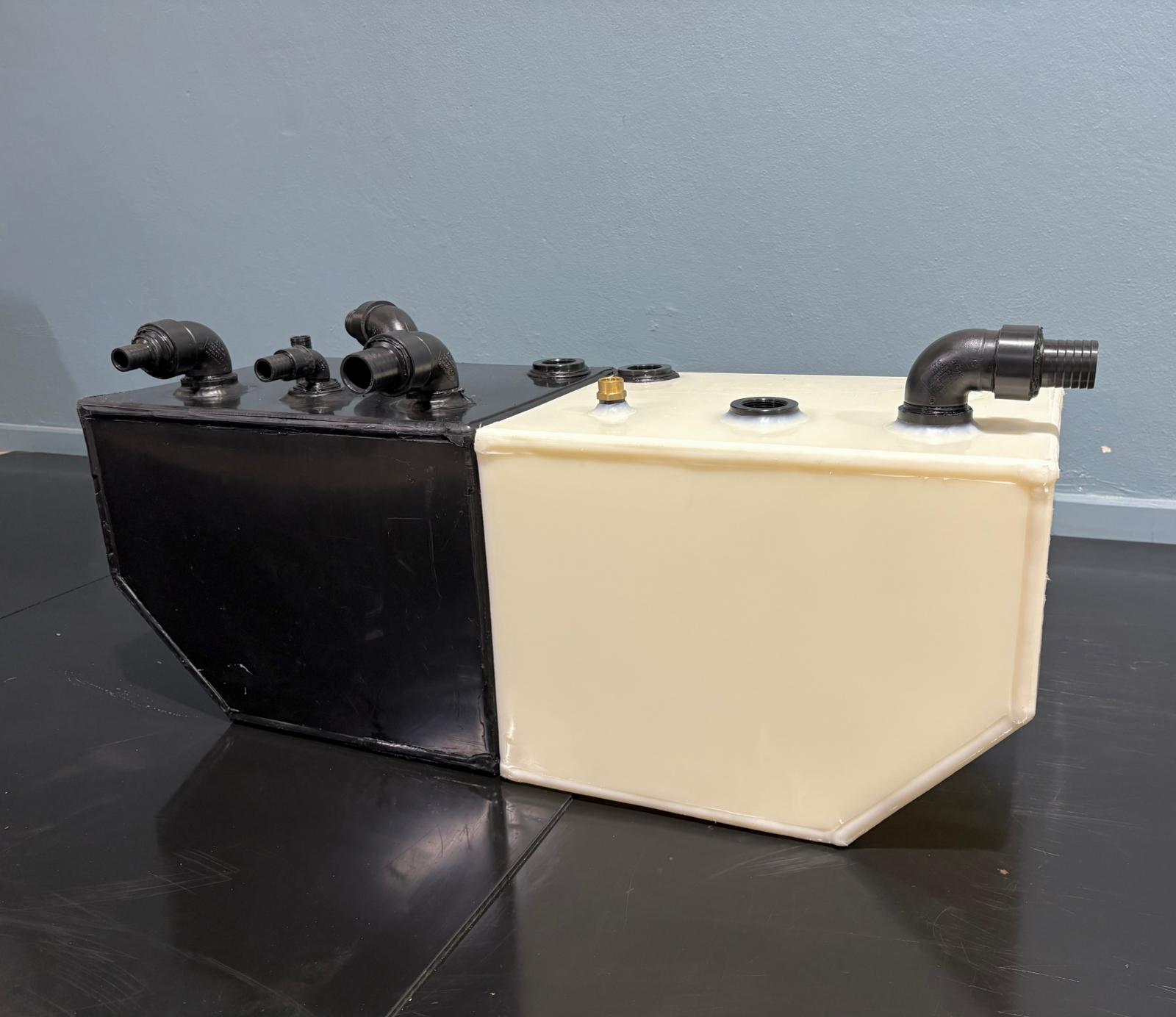

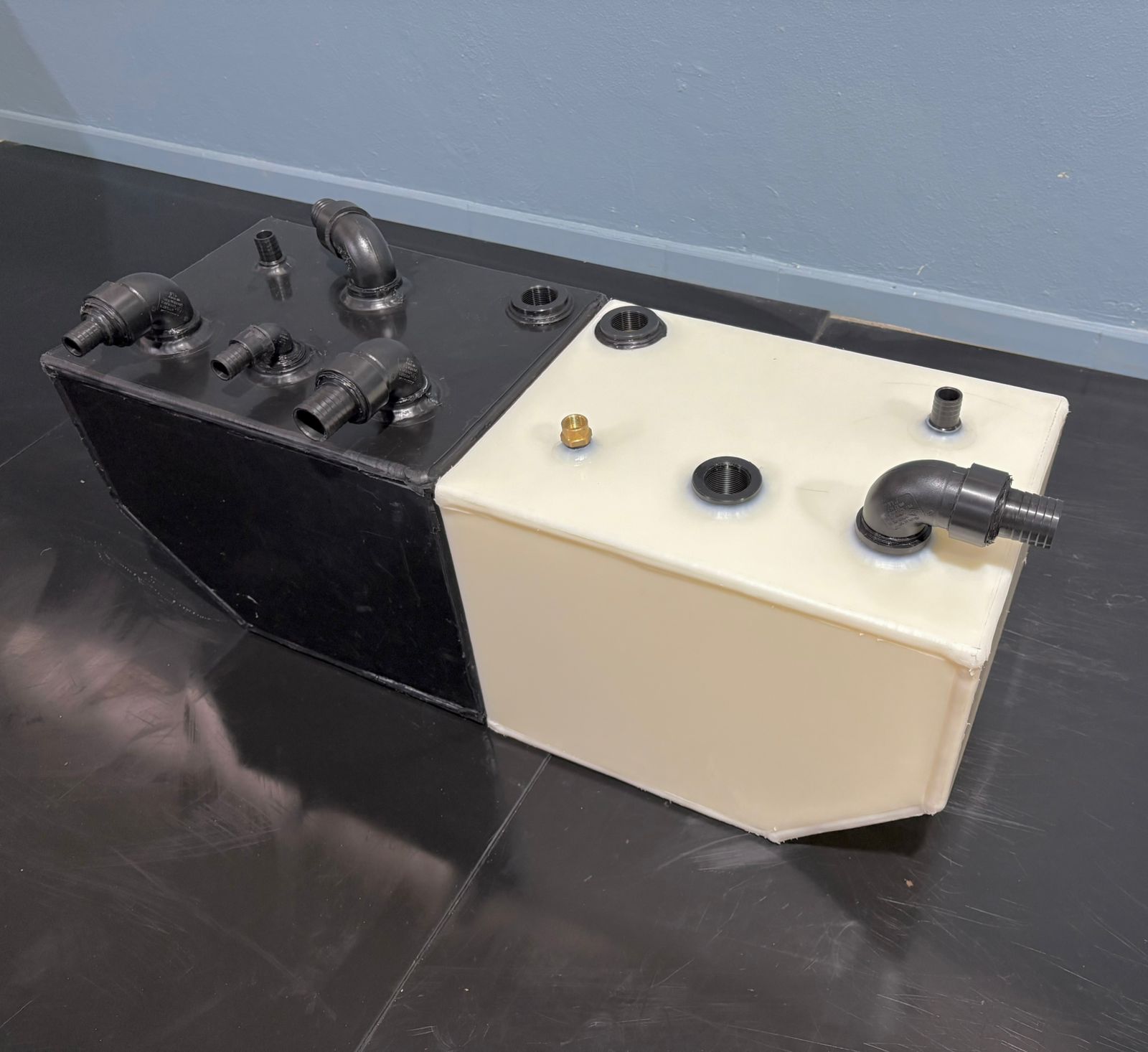

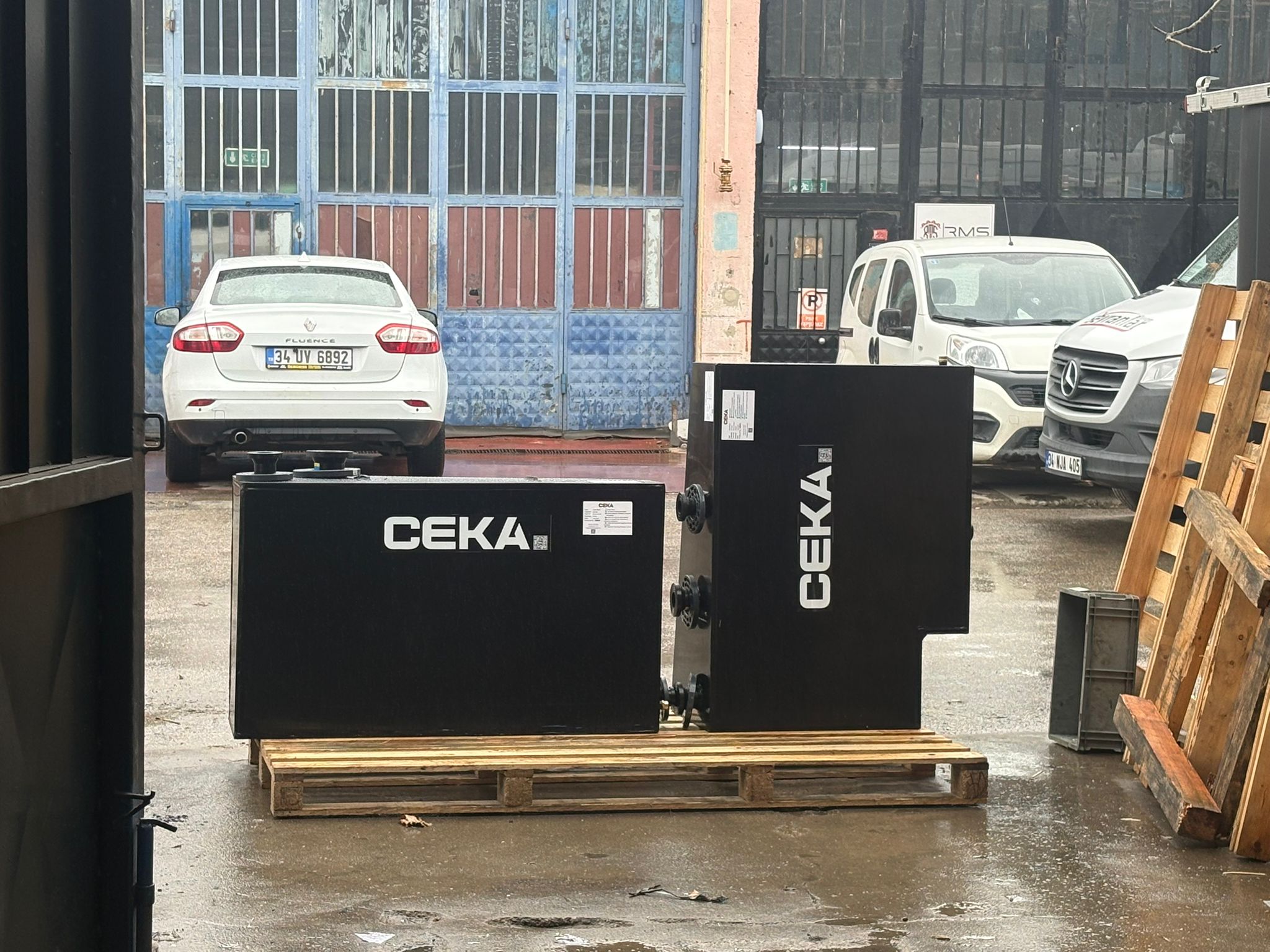

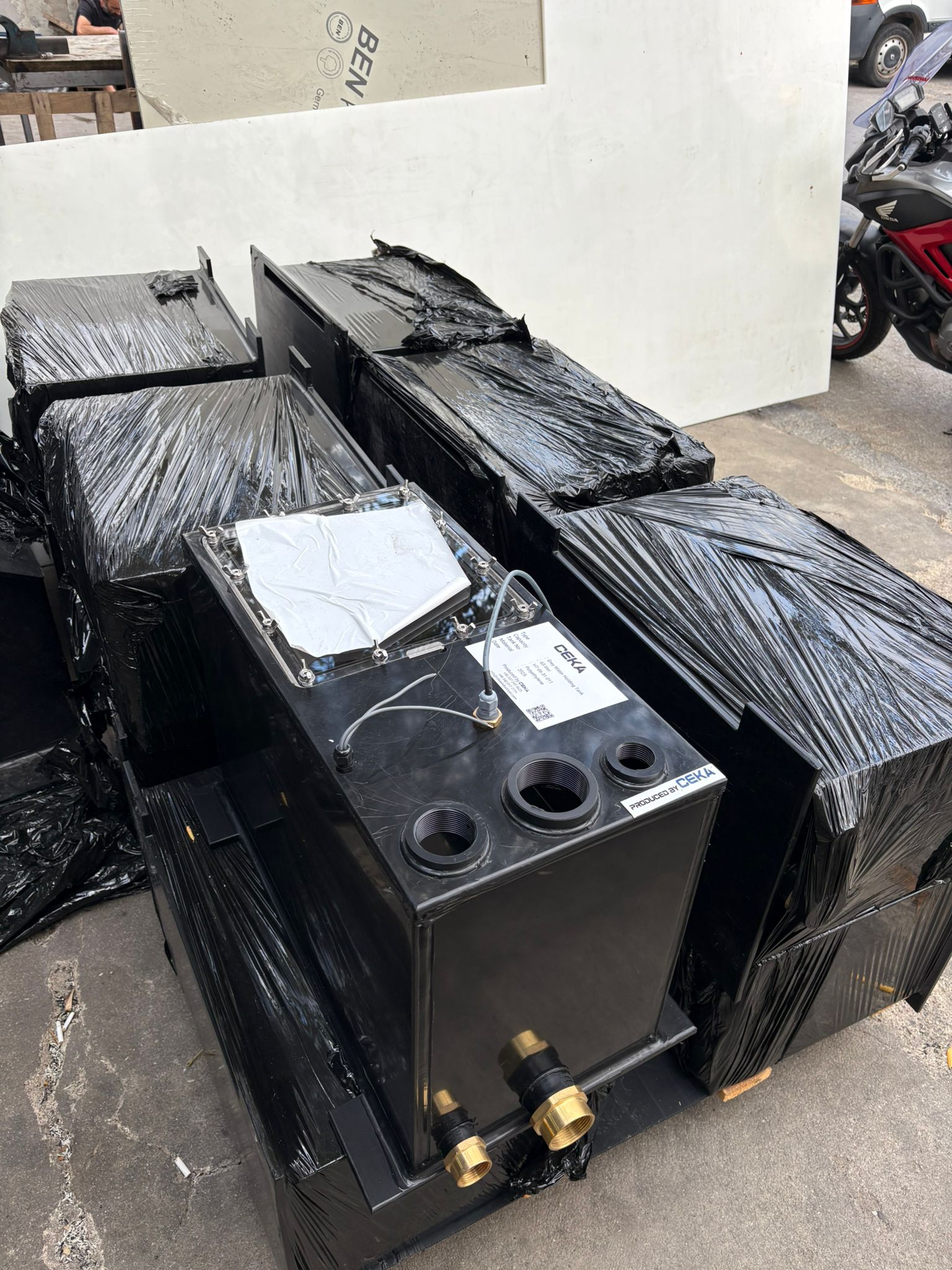

Economical, Hygienic and Durable Storage

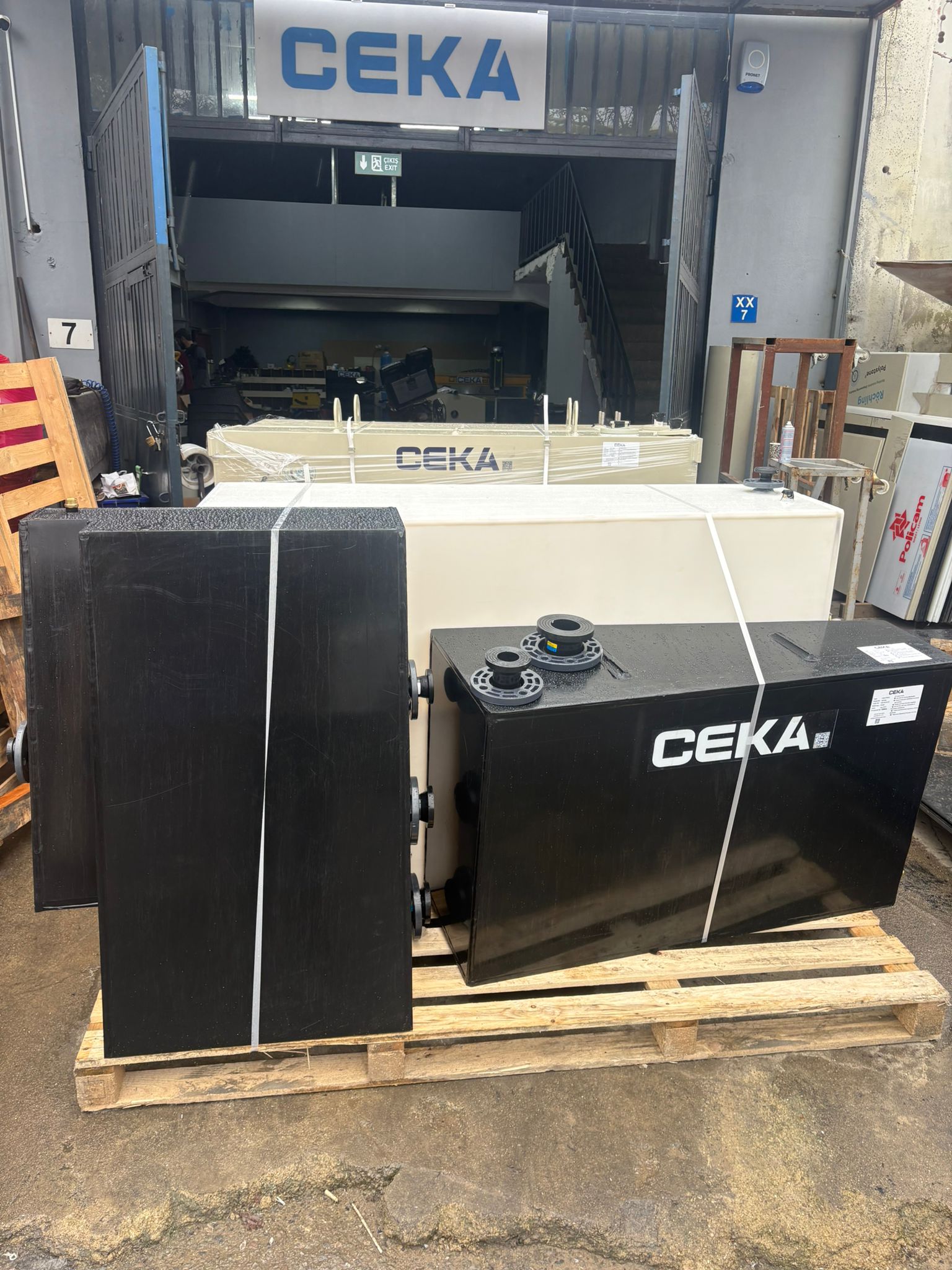

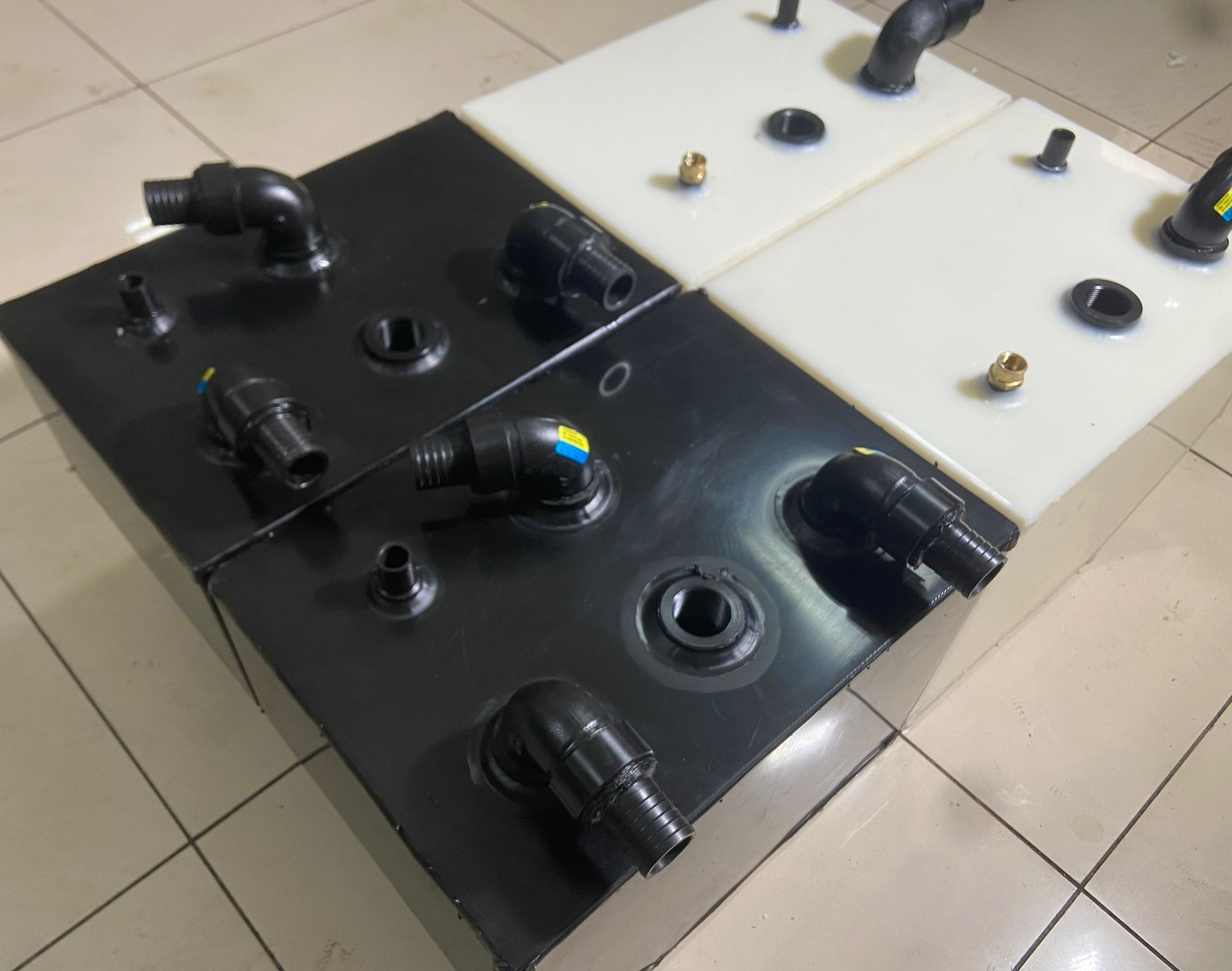

CEKA Polyethylene (HDPE) Tanks are manufactured from high-density polyethylene sheets, and are safely used for storing water, food products and many chemicals due to their food safety compliance and high impact resistance. Their UV stabilized structure ensures long life in outdoor conditions.
Our tanks, which are cut with a special CNC Router in the workshop environment and joined with extrusion welding within CEKA, ensure leak-proofness and hygiene. Thanks to their smooth inner surface, they do not retain sediment and are easy to clean.
| TECHNICAL SPECIFICATION | VALUE | DESCRIPTION |
|---|---|---|
| Capacity Range | 30 Liters - 20 Tons | Standard molds or custom manufacturing |
| Material | HDPE (PE 100) | High-Density Polyethylene |
| Operating Temperature | -40°C ... +60°C | Wide temperature range |
| Manufacturing Method | CNC Cutting + Extrusion | Welding according to DVS 2207 standards |
| Color Options | Blue / White / Black | Selection according to application area |
Superior Manufacturing Technology and Accessories
CEKA thermoplastic tanks are produced using microprocessor controlled extrusion welding technology instead of manual hand welding.
This method ensures that plastic sheets are molecularly bonded together, providing 100% leak-proofness and body integrity. Welding strength can reach up to 95% of the base material strength, offering long-lasting use.
All our tanks are designed according to DVS 2205 (German Thermoplastic Tank Manufacturing Standard) norms. Optimum wall thickness is determined according to liquid density, operating temperature and tank height, eliminating the risk of deformation and bulging.
Flanged, threaded or union connections of all diameters from DN15 to DN500. Flexible mounting options at desired locations and heights.
Transparent pipe type mechanical level indicators or automation compatible magnetic level sensors. Overflow lines for safety.
Economical and Stable
Full Drainage
Sediment Preventing

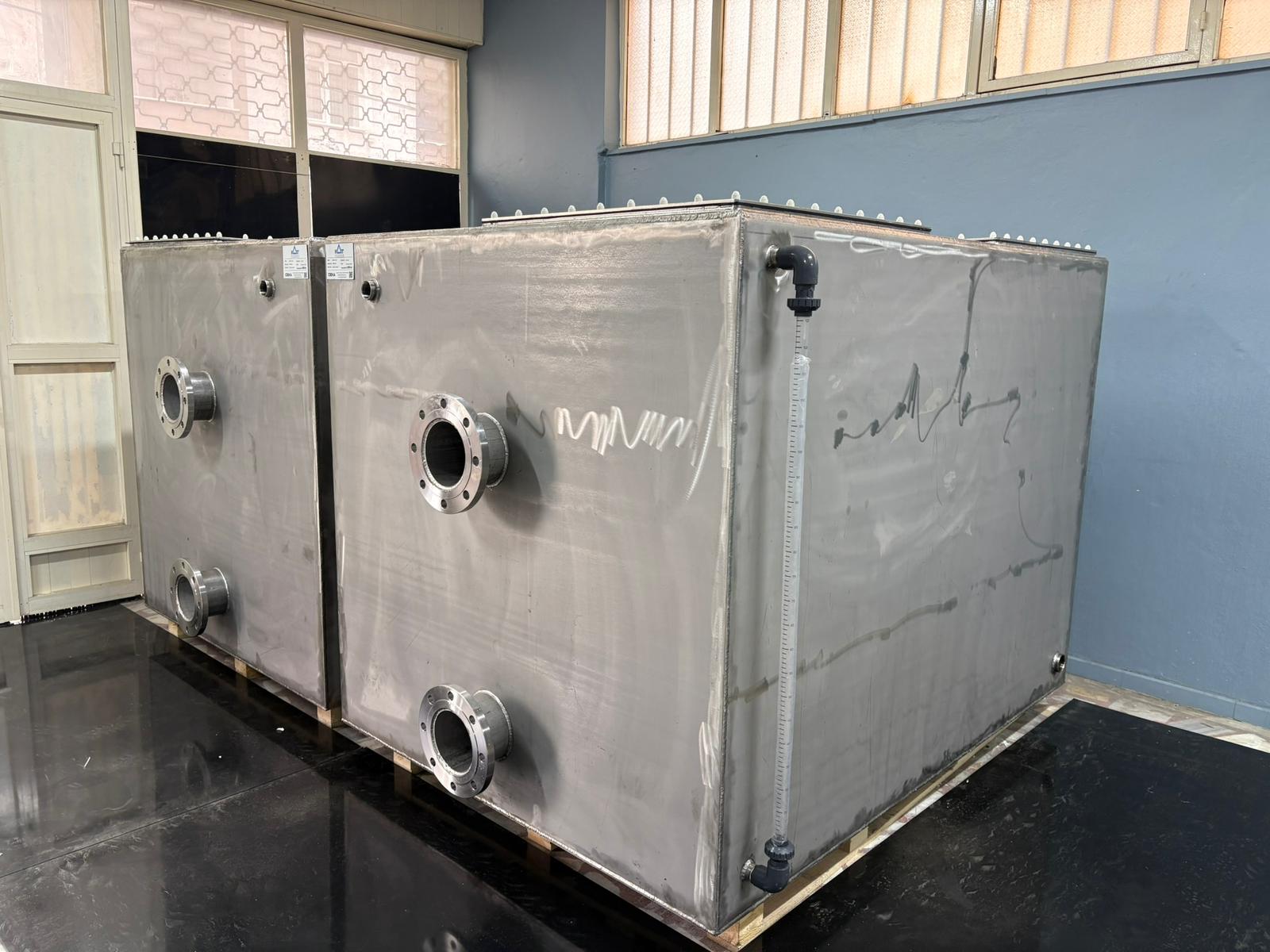

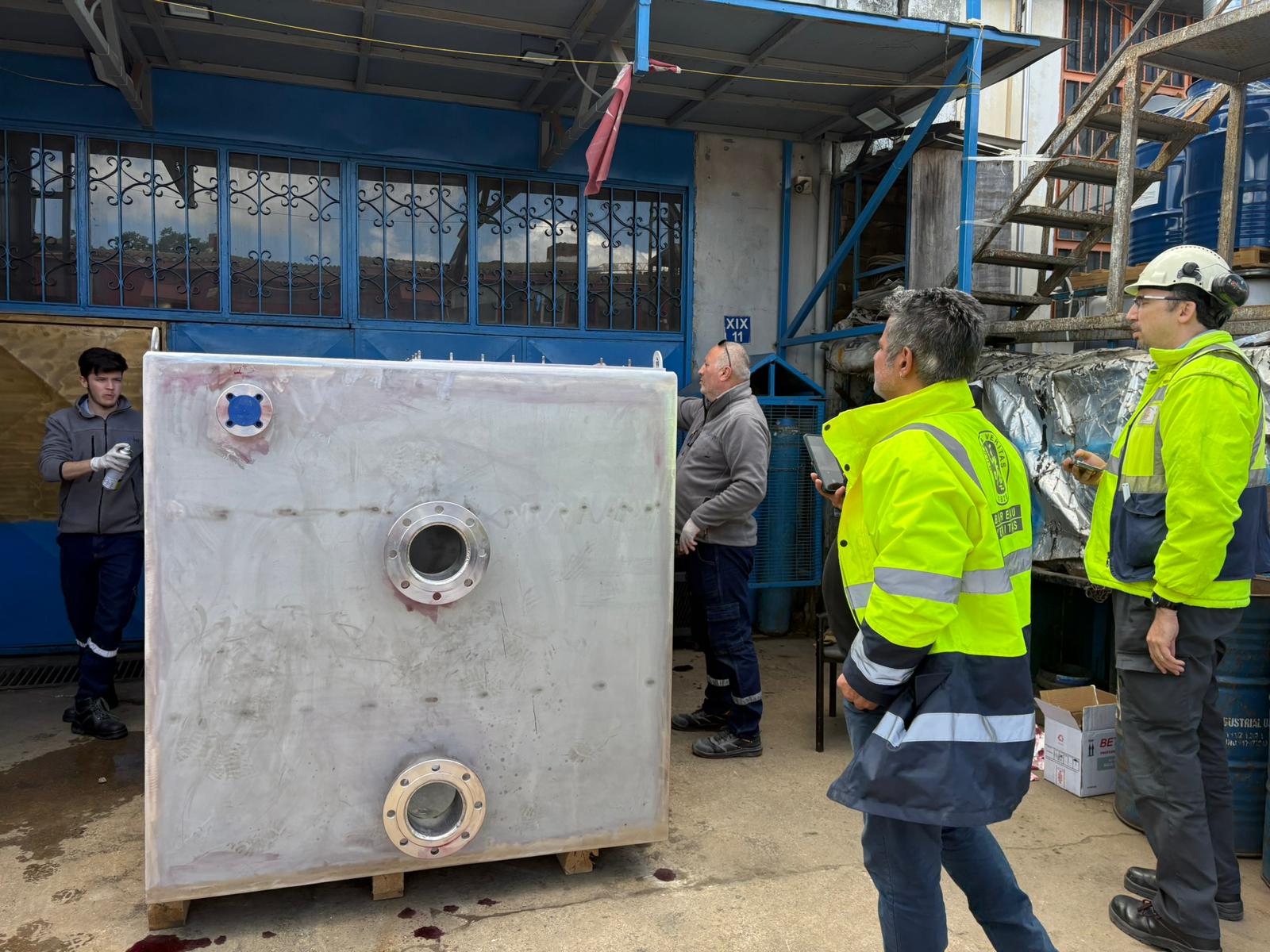

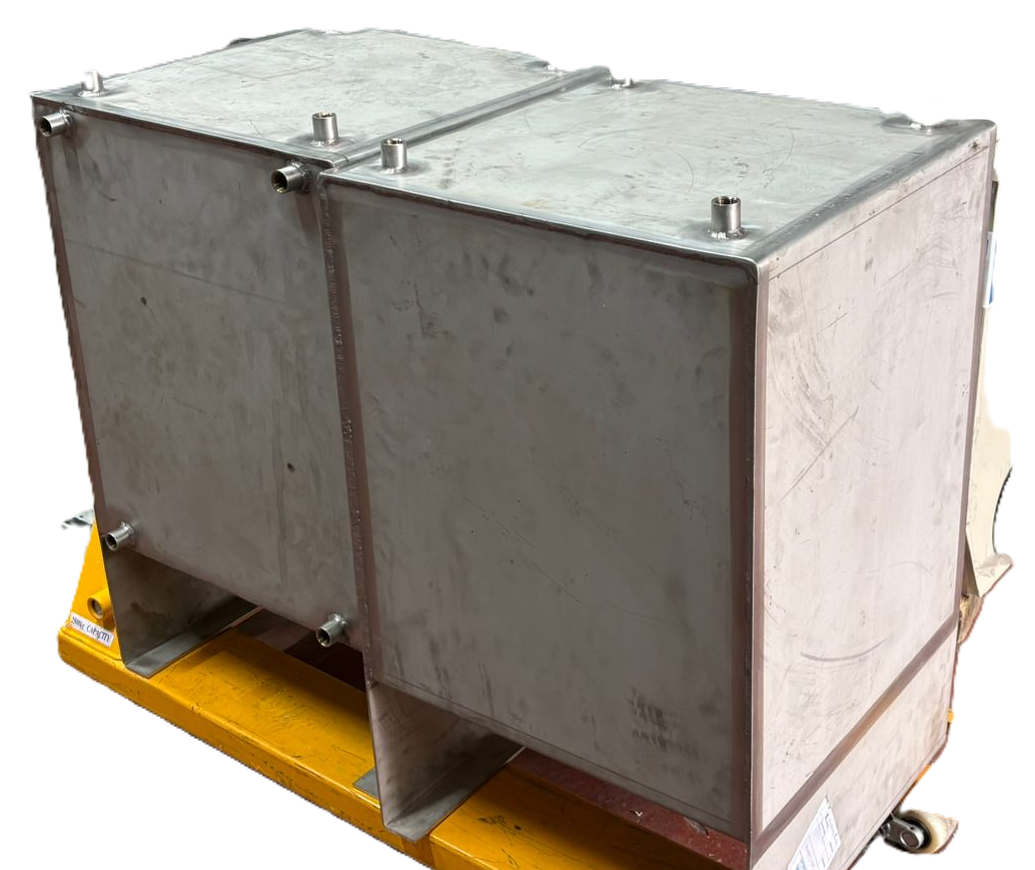

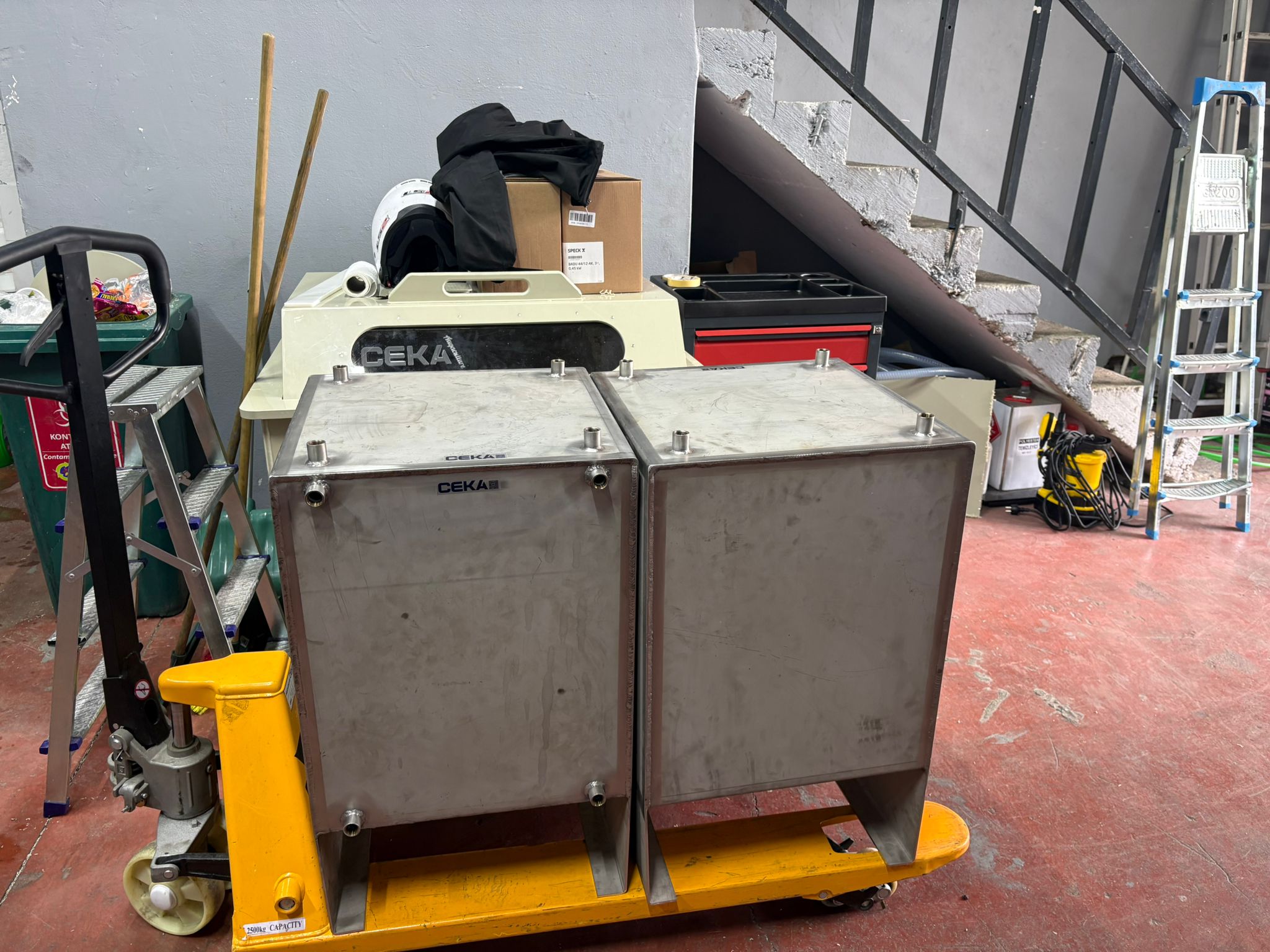

Hygienic, Pressurized and High Strength
CEKA Stainless Steel Tanks are ideal solutions for the food, pharmaceutical and cosmetic sectors requiring high hygiene standards, as well as for industrial processes requiring high pressure and temperature resistance.
Our tanks, manufactured from AISI 304 and 316 grade stainless steel, can be designed with heating/cooling coils (jacketed), mixers and special insulation according to customer demand. Weld seams are carefully cleaned and polished.
| TECHNICAL SPECIFICATION | VALUE | DESCRIPTION |
|---|---|---|
| Capacity Range | 30 Liters - 20 Tons | Special calculation for pressure vessels |
| Material Quality | AISI 304 / 316 / 316L | Selection according to application area |
| Surface Treatment | 2B / Satin / Polishing | Ra < 0.8 µm hygienic surface |
| Equipment | Mixer / Jacket / Insulation | Options according to process requirements |
| Welding Method | TIG / Argon Welding | Leak-proof and smooth weld seam |

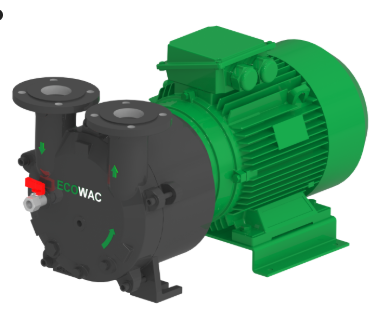

ECOWAC High Performance Vacuum Solutions
ECOWAC GreenScrew Series are new generation vacuum pumps with dry screw technology, operating oil-free and contact-free.
While providing maximum efficiency in industrial processes, they are environmentally friendly due to zero oil use and eliminate waste costs. They minimize your operating expenses with low energy consumption and long maintenance intervals.
Up to 50% energy saving with inverter controlled drive.
Maintenance-free, clean and environmentally friendly dry operation principle.
No wear thanks to friction-free screw design, offers long part life.
Low noise level (< 75 dB) for a comfortable working environment.
| MODEL | CAPACITY (m³/h) | MOTOR (kW) | VACUUM (mbar) |
|---|---|---|---|
| GS-100 | 100 | 2.2 | 0.01 |
| GS-350 | 350 | 7.5 | 0.01 |
| GS-600 | 600 | 11 | 0.01 |
| EcoMax 300 (Oiled) | 300 | 5.5 | 0.1 |
Closed-Circuit Protection for Vacuum Systems
To maintain the performance and extend the life of vacuum pumps, stable operating temperature is vital. The use of mains water or open tower systems can lead to scaling, corrosion and blockages within the pump over time, resulting in loss of efficiency.
CEKA Closed-Circuit Cooling Systems isolate your vacuum pump's cooling water from external contaminants using plate heat exchanger technology. This ensures your pump always operates with clean water and at an ideal temperature.
Due to the closed circuit, water hardness remains constant, preventing scale formation.
Constant water temperature ensures the vacuum pump operates at maximum capacity.
Reduces the need for internal pump cleaning, extends service life.
Heat Exchanger Type
Gasketed Plate (PHE) / Brazed (BPHE)
Plate Material
AISI 316 Stainless Steel / Titanium
Control System
Thermostatic Valve / PLC Integration
Application Area
Water Ring and Oil-Sealed Vacuum Pumps
Freshwater Combined Filter
Combined Filter
Combined Filter
Rotary Drum Filter
Rotary Drum Filter
Pressure Filter
AdBlue PP Tank
Acid PP Tank
Fire Water Tank
Polypropylene Chemical Tank
Polypropylene Chemical Tank
Polypropylene Tank
Ultraviolet
Ultraviolet
Stainless Steel Tank
Stainless Steel Tank
Stainless Hydraulic Tank
Fire Water Tank
Chemical Tank
Cartridge Carbon Filter
Chemical Tank
PE Tank
Waste and Fresh Water Tank
Industrial Bag Filter System
Protein Skimmer
Protein Skimmer
Stainless Carbon Filter
Polypropylene Carbon Filter

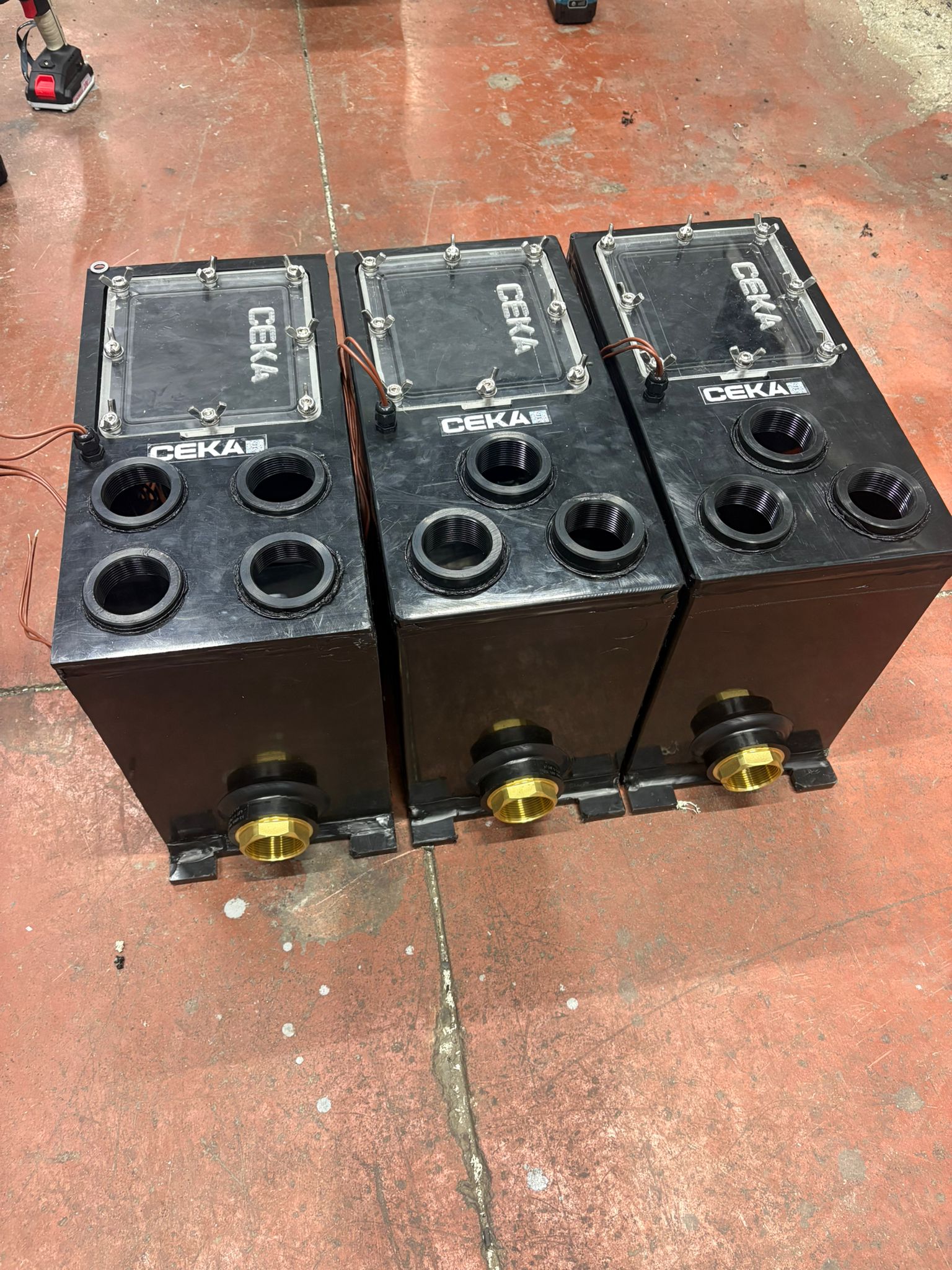

Grey Water Tank
Chemical Tank
Ultraviolet
PE Tank
In our modern facility in Tuzla Organized Industrial Zone, we carry out production in international standards with our advanced technology CNC machine park and expert engineering staff. With an annual 100+ tons of thermoplastic processing capacity, we are your industrial solution partner for both domestic and international projects.
We use automatic butt welding (Butt Fusion) and extrusion
technologies in thermoplastic tank manufacturing. This ensures 100% leak-proofness and body
integrity without disturbing the material's molecular structure.
With our CNC Router cutting technology, we produce tanks up to 50m³ capacity with mm
precision, in accordance with DVS 2205 and EN 12573 standards.
We produce precision filtration equipment, pressure vessels and chassis from AISI 304/316L stainless steel using TIG/Argon welding. Acid passivation and electro-polishing are applied for maximum corrosion resistance.
Every project is 3D modeled in SolidWorks/AutoCAD before manufacturing. Designs are validated with static load analysis and fluid simulations (CFD) to minimize potential errors.
Beyond standard products, contact our expert team for engineering solutions tailored to your business needs.
Quick Contact
Factory & Office
IDOSB Asort Sok. No:
20/7
34956
Tuzla / ISTANBUL
Email Us
sales@cekaindustrial.com
Call Us
+90 537 243 56 25
Our Website
www.cekaindustrial.com
